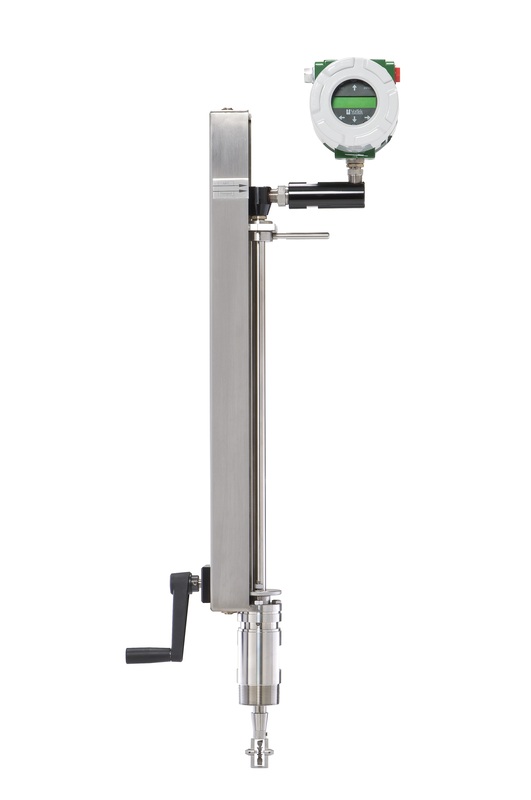

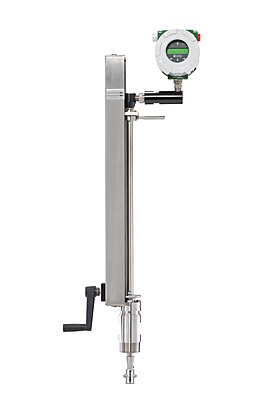

Vortek TurboPro Insertion Turbine Steam Flow Meter (Model Pro-T®)
VorTek Instruments’ Model Pro-T® multivariable flowmeters utilize three primary sensing elements– –a turbine sensor, an RTD temperature sensor, and a solid-state pressure transducer–– to measure the mass flow rate of gases, liquids and steam. Because the TurboPro® is able to measure all process variables within a single device it provides exceptional accuracy, simplifies system design and reduces installation costs.
They are easily installed with flanged or Male NPT process connections in any pipe size of two-inches and greater. Optional retractor or “hot-tap” hardware simplifies maintenance operations.
TurboPro Model Pro-T provides excellent rangeability and can measure very low flow rates with negligible permanent pressure drop. Additionally rotors are interchangeable, making this meter a good choice for installations with step changes in seasonal flow rates. To simplify installation and commissioning, all measured variables and programming menus are available on the instrument’s easy to use display and control pad.
The product line is available with a wide range of options and meter configurations to meet your specific application requirements.
- Product support documents: https://www.emergentmetering.com/steam-meters
- Visit product support page: https://www.vortekinst.com/product-resources/turbo-pro-model-pro-t-v-3
- Volumetric or mass flow monitoring of most liquids, gasses, and steam.
- Meter delivers mass flow, temperature, pressure, and density readings from a single installed device and reduces initial cost, installation cost and cost of ownership over the lifetime of the instrument.
- Compensated mass flow readings of liquids, gasses, and steam
- Easy to install and commission - Hot tappable, process shut down not required for installation
- High accuracy with range ability up to 17 to 1
- Temperature -450 to 850 degrees Fahrenheit
- Pressure up to1500 PSIG
- insertion style melting permits installation in any pipe three inches and greater
- Field Configurable ranges, outputs and displays
- Remote electronics option available for use in harsh environments or locations with limited access
- 4-20 mA loop-powered Mass Meter design saves on energy costs
- Hart, MODBUS and BACNET communications available.
