AcquiSuite – Obvius A8332-8F2D
AcquiSuite – Obvius A8332-8F2D
AcquiSuite – Obvius A8332-8F2D

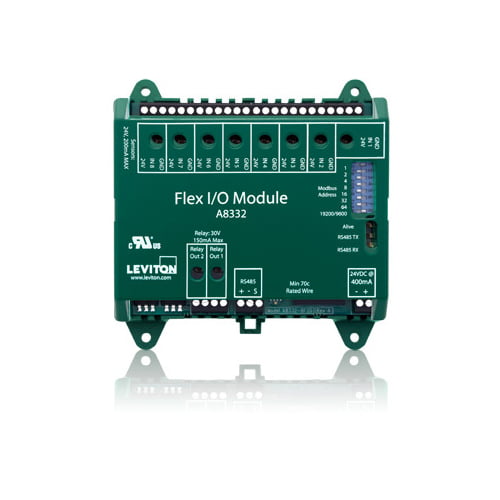

Obvius / Leviton AcquiSuite A8332-8F2D

$450.00 $550.00
Tags:
The Leviton, Obvius Acquisuite A8332 Flex I/O Module comes with 8 flexible inputs, 2 relay outputs. Modbus RTU output capabilities. It is ideally paired with the Obvius A8810 integration hub that will act as the Modbus RTU master.

The Flex I/O module is a universal remote I/O module with 8 user selectable inputs. These input options includes pulse, analog (4-20 mA) and resistance input. Integrate with any Programmable Logic Controller or distributed Modbus network through RS-485.

Our Flex I/O is a cost-effective way to collect data from submeters or sensors and bring that information into a Modbus network or energy monitoring system. As a stand-alone or bundled package, the Leviton A8332 Flex I/O module can be incorporated with data acquisition and submetering devices to provide a cost-effective energy monitoring solution. The Flex I/O is compatible with virtually any Modbus master, allowing customers the flexibility to use it in existing Modbus networks. Use with the Leviton Energy Monitoring Hub (EMH).

Features
  • Designed specifically for metering applications
  • Easily add meters and sensor to a Modbus network
  • 8x user selectable inputs
  • 2x output relays
  • 2x pulse replicator
  • Non-volatile memory
  • LEDs for visual verification/status
  • Din or wall mount for easy installation
  • Field upgradable firmware
Compatibility
The Flex I/O is compatible with virtually any PLC or Modbus Master, allowing for the flexibility to use it in existing Modbus networks. Use with the Obvius AcquiSuite and take advantage of plug-and-play communication or use with the Obvius ModHopper for wireless communication.

Applications
  • Converting analog, resistive and pulse inputs to Modbus
  • Utility submetering (electric, gas, water, etc.)
  • Cost allocation
  • Measurement and verification
  • Benchmark building energy usage
  • Relay outputs for demand control
  • Environmental monitoring
  • Track energy use and peak demand for demand response
  • DC current monitoring for renewable energy

Link to Data Sheets and Specifications: https://leviton.com/products/a8332-8fd
Choose Quantity
+ Add to Cart
Product Details
  • Designed specifically for metering applications
  • Easily add meters and sensor to a Modbus network
  • 8x user selectable inputs
  • 2x output relays
  • 2x pulse replicator
  • Non-volatile memory
  • Industrial temperature range -30 to 70C
  • LEDs for visual verification / status
  • DIN or wall mount for easy installation
  • Field upgradable firmware
Inputs
ModesVoltage:
0 to 10 VDC (min/max/average/instantaneous data)
Accuracy: ±0.25% of full scale at 68°F (20°C)
Current:
4 to 20 mA (min/max/average/instantaneous data)
Accuracy ±0.25% of full scale at 68°F (20°C)
Resistance:
4 to 20 mA (min/max/average/instantaneous data)
Pulse:
Intended for use with dry contact outputs (consumption/rate/runtime/status)
Standard and KYZ modes for form A and C relay outputs
Input terminals supplies 5 V at 5 mA sense voltage to detect contact closures
Maximum rate: 10 Hz, minimum pulse width 50 ms
Adjustable contact closure threshold: 100 Ω to 5 kΩ

Serial PortRS-485 two wire, 19200 or 9600 baud, 8N1
I/O8 Flex IO inputs with user selectable modes: voltage, current, resistance, pulse and status
IsolationPulse outputs and RS-485 port are isolated to 1500 VDC;
Power input, RS-232 and analog/pulse inputs are non-isolated
Outputs
Relays2x, dry contact (opto-fet) 30 VDC, 150 mA max
Communication
ProtocolsModbus/RTU
General Specifications
ProcessorARM7, field upgradable firmware
LEDs8x input status LEDs (red), 2x Modbus TX/RX (yellow), 1 power/alive status (green)
MemoryPulse count and runtime values are stored in non-volatile memory
Power Supply24 VDC, 200 mA but not to exceed 8 A, required
Operating Temperature-22 to 158°F (-30 to 70°C), 0 to 95% RH, non-condensing
Altitude6561.58' (2000 m) maximum
PollutionDegree 2
Dimensions4.13 x 3.39 x 1.18" (105 x 86 x 30 mm)
Weight3.7 oz (105 g)
EmissionsFCC CFR 47 Part 15, Class A, EN 61000, EN 61326
SafetyUL61010 Recognized, EN61010
