Why Water Metering Is Essential for Industrial Manufacturing Facilities?
Accurate water metering is critical for industrial manufacturing facilities aiming to enhance operational efficiency, reduce utility expenses, and promote sustainable water use. Implementing industrial water meters enables precise tracking of water consumption, facilitating rapid identification of leaks, wastage, and inefficiencies within production processes.
By investing in water metering technology, manufacturers gain valuable insights into water usage patterns, enabling proactive management, accurate cost allocation, and improved compliance with environmental standards. Facilities benefit from reduced water consumption, minimized downtime, lower operational costs, and stronger sustainability credentials.
In today’s increasingly resource-conscious industrial landscape, industrial water metering is a vital tool for enhancing productivity, optimizing resource management, and achieving significant savings in both water usage and associated costs.
Frequently Asked Questions: Water Meter Selection and Installation
Installing a water meter helps accurately track consumption, detect leaks, manage water costs effectively, improve efficiency, and ensure compliance with environmental standards.
Consider flow rates (minimum, maximum, and typical usage), pipe size, water quality, accuracy requirements, operating pressure and temperature, installation environment, and maintenance needs.
Common water meter types include:
Positive Displacement Water Meters: Ideal for low-flow, high-accuracy applications.
Turbine Water Meters: Suitable for moderate to high-flow, clean water applications.
Electromagnetic (Mag) Flow Water Meters: Excellent accuracy, suitable for conductive fluids, and minimal maintenance.

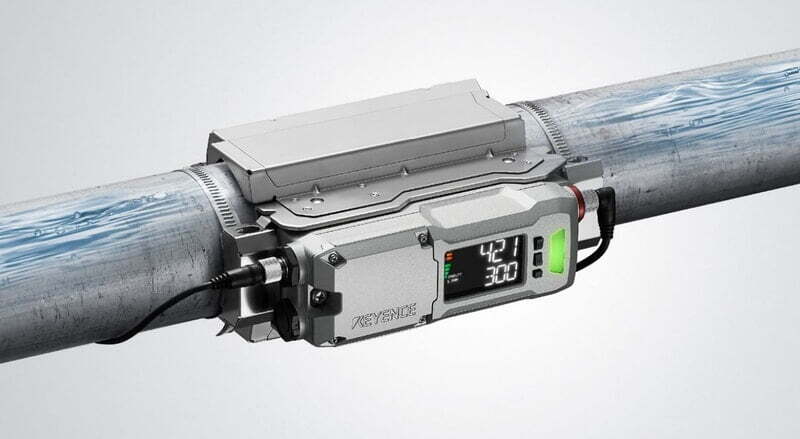

Ultrasonic Flow Water Meters: Non-invasive, versatile for retrofitting existing pipes, minimal pressure drop.
- High Accuracy at Low Flow Rates - Provides excellent accuracy (typically ±0.5% to ±1%), especially suitable for measuring low or intermittent flow conditions, common in residential or low-volume industrial applications.
- Direct Volumetric Measurement - Directly measures the volume of water flowing through the meter, ensuring precise billing and consumption tracking.
- Reliable Performance - Proven technology with consistent, dependable operation, ideal for applications requiring precise consumption data.
- Minimal Upstream/Downstream Piping Requirements - Requires minimal straight piping, simplifying installation in tight or constrained spaces.
- Cost-Effective for Smaller Applications - Typically affordable and highly effective for residential, commercial, and small industrial installations.
- Mechanical Wear and Maintenance - Contains moving parts subject to wear, which may require periodic maintenance, recalibration, or eventual replacement.
- Pressure Loss - Causes some pressure drop due to internal moving components, potentially impacting overall system efficiency.
- Not Ideal for High Flow Rates - Limited effectiveness at sustained high flow rates, potentially leading to increased wear, reduced accuracy, or meter damage over time.
- Sensitivity to Water Quality - Can be affected by debris, suspended solids, or contaminants in water, potentially causing clogging or damage to internal components. Requires clean or filtered water for optimal performance.
- Limited Size Availability - Typically suited for smaller pipe sizes, making it less suitable for large-scale industrial or high-capacity water supply applications.
- High Accuracy at Moderate to High Flow Rates - Provides excellent accuracy (typically ±0.5% to ±1%) under consistent, moderate to high-flow conditions, ideal for industrial or commercial applications.
- Wide Flow Range Capability - Effective at handling a broad flow range, making it suitable for varied demand scenarios and versatile applications.
- Compact and Lightweight - Typically designed to be compact and easy to install, suitable for tight spaces or complex piping arrangements.
- Rapid Response to Flow Changes - Quick responsiveness makes it useful for process control, real-time monitoring, and applications requiring dynamic flow measurement.
- Cost-Effective for Larger Volumes - Economical solution for accurately measuring larger water volumes, especially in clean water applications.
- Sensitivity to Water Quality - Performance and accuracy can deteriorate with debris, particulate matter, or contaminants in water, potentially causing turbine blade damage or meter inaccuracy.
- Mechanical Wear and Maintenance - Contains moving parts (turbine rotor), which may lead to mechanical wear and require periodic maintenance, inspection, or replacement over time.
- Pressure Drop - Introduces moderate pressure loss due to the internal turbine mechanism, potentially reducing overall system efficiency.
- Reduced Accuracy at Low Flow Rates - Less accurate or ineffective at very low flow rates, limiting applicability for small-volume or intermittent usage.
- Upstream/Downstream Piping Requirements - Requires adequate straight piping lengths before and after the meter to achieve accurate measurement, complicating installation in constrained spaces.
- High Accuracy at Low Flow Rates - Provides exceptional accuracy (typically ±0.5% to ±1%) at low and intermittent flow rates, ideal for precise water usage monitoring and billing.
- Direct Volumetric Measurement - Measures actual water volume directly, ensuring accurate and reliable consumption tracking.
- Reliable and Proven Technology - Established design offering consistent, dependable performance, making them widely used in residential, commercial, and small industrial applications.
- Minimal Straight Pipe Requirements - Requires minimal upstream and downstream straight piping, simplifying installation even in limited spaces.
- Cost-Effective for Smaller Applications - Affordable and effective choice for low-volume water measurement, residential, and small commercial installations.
- Mechanical Wear and Maintenance - Contains moving parts, resulting in potential mechanical wear over time, which necessitates periodic maintenance, calibration checks, or replacement.
- Pressure Loss - Internal moving components can create pressure drop, which may impact overall water system efficiency.
- Unsuitable for High Flow Rates - Less effective and prone to wear or reduced accuracy at sustained high flow rates, limiting suitability for large-volume applications.
- Sensitivity to Water Quality - Performance can degrade when water contains debris, particulates, or contaminants, potentially causing blockages or damage to internal meter components. Filtration may be required.
- Limited Size Availability - Typically limited to smaller pipe diameters, restricting their applicability in large-scale industrial settings.
- High Accuracy - Extremely accurate (typically ±0.2% to ±1%), ideal for precise measurement in critical industrial processes or billing applications.
- No Pressure Drop - Open, unobstructed design creates virtually no pressure loss, preserving system efficiency and reducing energy costs.
- Low Maintenance - No moving or mechanical parts, resulting in minimal maintenance, long-term reliability, and reduced lifecycle costs.
- Wide Flow Range - Accurately measures across a wide flow spectrum, suitable for diverse operating conditions and varying water demands.
- Suitable for Various Liquids - Capable of accurately measuring conductive fluids, including water with suspended solids, slurries, or wastewater, offering versatility in challenging industrial environments.
- Durable and Reliable - Robust design capable of handling abrasive and corrosive liquids, enhancing operational durability.
- Requires Conductive Fluids - Only works with electrically conductive liquids; ineffective for measuring pure or highly purified water, oils, or non-conductive liquids.
- Higher Initial Cost - Generally more expensive upfront than turbine or positive displacement meters, potentially influencing budgeting decisions.
- Installation Requirements - Needs careful grounding and installation to ensure accurate operation; specific straight pipe lengths upstream and downstream must be observed.
- Power Supply Required - Typically requires a stable power supply, potentially complicating installation in remote or off-grid applications.
- Sensitivity to Electrical Noise - Susceptible to interference from electromagnetic noise if not properly installed or shielded, potentially affecting accuracy.
- High Accuracy - Offers excellent accuracy (typically ±0.5% to ±2%), suitable for precise monitoring, billing, and energy management applications.
- Non-Invasive Measurement - Clamp-on installation options enable measurement without cutting or modifying existing pipes, ideal for retrofits or temporary installations.
- Minimal Pressure Loss - Non-obstructive design leads to minimal or no pressure drop, maintaining system efficiency and reducing operational costs.
- Low Maintenance - No moving parts, resulting in significantly reduced maintenance needs, enhancing long-term reliability.
- Wide Flow Range Capability - Effectively measures across a broad range of flow conditions, from very low to very high flow rates.
- Higher Initial Cost - Typically involves higher upfront costs compared to mechanical meters such as turbine or positive displacement meters.
- Sensitivity to Installation Conditions - Requires careful installation and adequate straight pipe lengths upstream and downstream for optimal accuracy.
- Pipe Condition Dependency - Accuracy may be impacted by pipe conditions such as corrosion, buildup, pipe-wall thickness, coatings, or insulation.
- Complex Calibration and Setup - Initial setup and calibration may be complex and often require professional expertise to ensure optimal performance.
- Performance Affected by Water Quality - Presence of air bubbles, sediment, or particulates in water can negatively affect measurement accuracy.
Meter sizing is based on the maximum and minimum expected flow rates, pipe size, operating conditions, and peak water demand. Proper sizing ensures accurate readings and optimal meter performance.
It is recommended that water meter installations be performed by qualified professionals or licensed plumbers to ensure safety, accuracy, and compliance with local codes.
Ensure adequate straight pipe lengths upstream and downstream for accuracy, follow manufacturer instructions regarding meter orientation, and include isolation valves for easy maintenance or future servicing.
Industrial water meters typically require calibration every 1–2 years, depending on manufacturer recommendations, regulatory requirements, and the criticality of your application.
Indicators include inconsistent or unusually high water bills, inaccurate or erratic readings, visible leaks, meter corrosion, or noticeable degradation in system performance.
Yes, smart water meters provide real-time consumption data, automated reporting, leak detection alerts, remote monitoring, and seamless integration into facility management systems, enhancing efficiency and reducing operational costs.
Select the right meter for your water quality and flow conditions, perform regular calibration and maintenance, ensure appropriate installation practices, and maintain proper upstream filtration or conditioning where required.
To get started, reach out to us at sales@emergentmetering.com or Contact Us for support. We want to equip our customers with the hardware and information needed to have a safe and successful installation as we recognize the power that high quality energy monitoring data can provide.
