Milesight EM500-CO2 Sensor with Temperature, Humidity and BarometricPressure
Non-returnable
$315.00
EM500-CO2 is designed for measuring CO2, temperature, humidity and barometric pressure in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, EM500-CO2 can work up to 10 years with 19000 mAh battery. Combining with Milesight LoRaWAN® gateway and Milesight Development Platform solution, users can manage all sensor data remotely. EM500-CO2 is widely used for applications like smart agriculture, smart city, forest fire detection, etc.
Emergent Metering can provide this product, preconfigured to ship with our Metering Panel that will include a Lorawan receiver, Leviton / Obvius Data Logger and Cellular Router for data transport to our monitoring service.

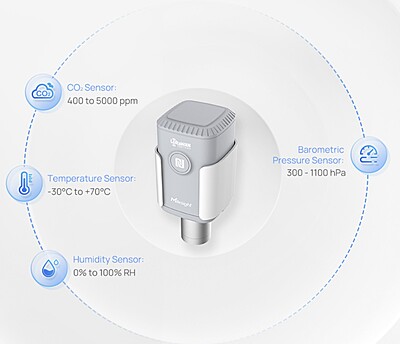

Integrated with multiple sensors like CO2, temperature, humidity, etc.
Ultra-wide-distance transmission up to line of sight of 10km
IP65waterproof enclosure for harsh environment applications
Built-in 19000 mAh replaceable battery and work for 10 years without replacement
Store historical records locally and support retransmission
Equipped with NFC for easy configuration
Compliant with standard LoRaWAN ®gateways and network servers
Quick and easy management with Milesight IoT Cloud and
Applications
Warehouse environment monitoring
Basement and underground parking monitoring
Smart agriculture
Forest fire detection
Smart building Milesight Development Platform
To learn more: https://youtu.be/nptzmUR8f48
Choose Quantity
Product Details
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Antenna | Internal Antenna |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Sensors | |
| Carbon Dioxide (CO2) | |
| Sensor Type | NDIR |
| Range | 400 - 5000 ppm |
| Accuracy | ± (30 ppm + 3 % of reading) (0°C - 50°C, 0 - 85%RH) |
| Resolution | 1 ppm |
| Temperature | |
| Sensor Type | MEMS |
| Range | -30°C to + 70°C |
| Accuracy | 0°C to + 70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C) |
| Resolution | 0.1°C |
| Humidity | |
| Sensor Type | MEMS |
| Range | 0% to 100% RH |
| Accuracy | 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) |
| Resolution | 0.5% RH |
| Barometric Pressure | |
| Sensor Type | MEMS |
| Range | 300 - 1100 hPa (-40°C - 85°C) |
| Accuracy | ±1 hPa |
| Resolution | 0.1 hPa |
| Others | |
| LED | 1 × LED Indicator (Internal) |
| Button | 1 × Power/Reset Button (Internal) |
| USB | 1 × USB Type-C(Internal) for Configuration and Console |
| Software | |
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | Mobile App(via NFC), PC software(via USB Type-C), Downlink |
| Advanced Features | Data Storage (1000 entries), Data Retransmission, Data Retrievability, Threshold Alarm, Calibration |
| Physical Characteristics | |
| Power Supply | 1 × 19000 mAh Li-SOCL2 Battery (ER34615) |
| Battery Life* | 10 years (10 min interval, 25 °C) |
| Operating Temperature | -30°C to +70°C |
| Relative Humidity | 0% to 95% (non-condensing) |
| Ingress Protection | IP65 |
| Housing & Color | ABS + PC, Grey |
| Weight | 434.7g (With battery and mounting bracket) |

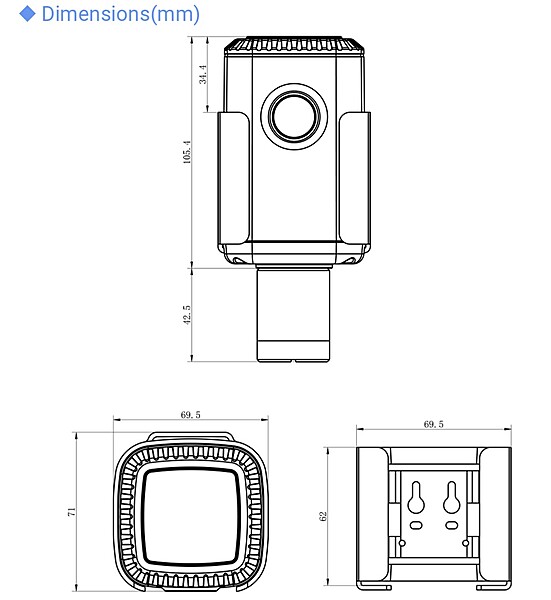

| Dimension | 147.9 × 71 × 69.5 mm (5.8 × 2.8 × 2.7 in) |
| Installation | Pole, Wall or DIN Rail Mounting |
| Approvals | |
| Regulatory | CE, FCC, LoRaWAN® Certified, ISED, ICASA, Telec |
| EMC | EN 55032, EN 55035 |
| EMS | IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-8 Level 4 |
| Radio Frequency | FCC Part 15B, FCC Part 15.247, EN 300 330, EN 301 489-1/3, EN 300 220-1/2 |
| Safety | EN62368-1 |
| Environmental | RoHS |
