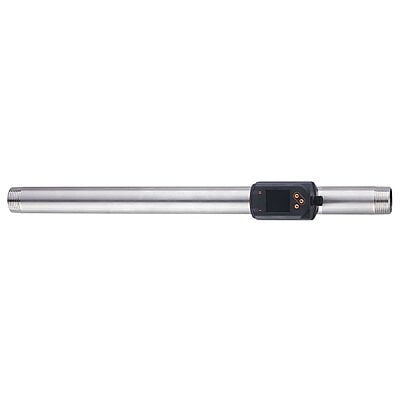

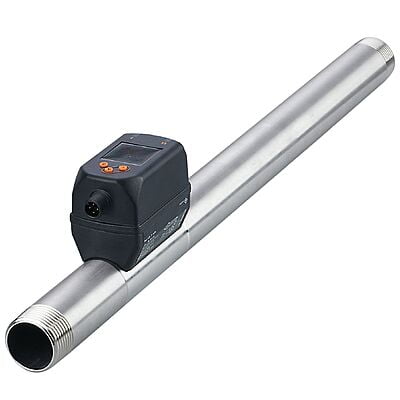

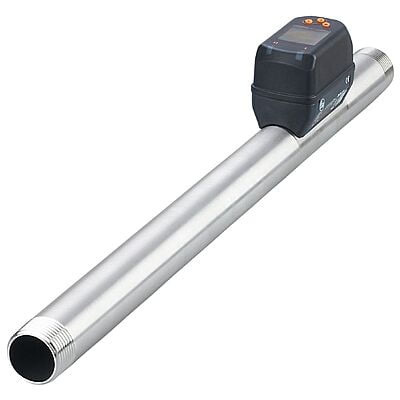

IFM SD8601 - 1" NPT Compressed Air (Argon, Nitrogen, CO2) Meter
IFM SD8601 - 1" NPT Compressed Air (Argon, Nitrogen, CO2) Meter
IFM SD8601 - 1" NPT Compressed Air (Argon, Nitrogen, CO2) Meter
IFM SD8601 - 1" NPT Compressed Air (Argon, Nitrogen, CO2) Meter

IFM SD8501 SDN11DGXFRKG/US-100 - 1" NPT Compressed Air Meter

$1,300.00
  • Precise measurement of flow, consumption, pressure and medium temperature
  • High accuracy, repeatability and measurement dynamics
  • For detecting argon (Ar), carbon dioxide (CO2), nitrogen (N2) and compressed air
  • Red/green display for clear identification of the acceptable range
  • Display can be rotated for optimum alignment
Includes: EVC759 - ADOGH040MSS0040H0 -
4-wire Micro DC cordset, straight connector, nickel plated brass coupling nut, 22 AWG, black PUR jacket, 40 Meters Long


Choose Quantity
+ Add to Cart
Product Details
Product characteristics
Number of inputs and outputsNumber of digital outputs: 2; Number of analog outputs: 1
Process connectionthreaded connection 1" NPT DN25
Pressure monitoring
Measuring range [psi]-15...232
Application
Applicationfor industrial applications
Mediacompressed air
Medium temperature [°C]-10...60
Min. bursting pressure [psi]928
Pressure rating [psi]232
MAWP (for applications according to CRN) [bar]10.5
Electrical data
Operating voltage [V]18...30 DC; (to SELV/PELV)
Current consumption [mA]< 80
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]1
Inputs / outputs
Number of inputs and outputsNumber of digital outputs: 2; Number of analog outputs: 1
Inputs
Inputscounter reset
Outputs
Output signalswitching signal; analog signal; pulse signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / closed; (configurable)
Max. voltage drop switching output DC [V]2.5
Permanent current rating of switching output DC [mA]150; (per output)
Number of analog outputs1
Analog current output [mA]4...20; (scalable)
Max. load [Ω]500
Pulse outputconsumed quantity meter
Short-circuit protectionyes
Type of short-circuit protectionyes (non-latching)
Overload protectionyes
Measuring/setting range
Measuring range
25...7945 scfh0.4...132.4 scfm1.2...340.2 ft/s
Display range
0...9535 scfh0...158.9 scfm0...408.2 ft/s
Resolution
5 scfh0.1 scfm0.2 ft/s
Set point SP
69...7943 scfh1.1...132.4 scfm3...340.1 ft/s
Reset point rP
30...7904 scfh0.5...131.7 scfm1.3...338.4 ft/s
Analog start point ASP
0...6357 scfh0...105.9 scfm0...272.2 ft/s
Analog end point AEP
1589...7946 scfh26.5...132.4 scfm68...340.2 ft/s
Low flow cut-off LFC
9...85 scfh0.2...1.4 scfm0.4...3.6 ft/s
In steps of
1 scfh0.1 scfm0.1 ft/s
Pressure monitoring
Measuring range [psi]-15...232
Display range [psi]-15...290
Resolution [psi]1
Set point SP [psi]-13...232
Reset point rP [psi]-15...231
Analog start point [psi]-15...186
Analog end point [psi]32...232
In steps of [psi]1
Volumetric flow quantity monitoring
Measuring range
0...100000000 m³0...353146667.2 scf
Display range
0...100000000 m³0...353146667.2 scf
Set point SP
0.001...10000000 m³0.05...353146667.2 scf
Pulse value
0.001...10000000 m³0.05...353146667.2 scf
In steps of
0.0001 m³0.005 scf
Pulse length [s]0.007...2
Temperature monitoring
Measuring range
-10...60 °C14...140 °F
Display range
-24...74 °C-11.2...165.2 °F
Resolution
0.2 °C0.5 °F
Set point SP
-9.7...60 °C14.6...140 °F
Reset point rP
-10...59.7 °C14...139.4 °F
Analog start point
-10...46 °C14...114.8 °F
Analog end point
4...60 °C39.2...140 °F
In steps of
0.1 °C0.1 °F
Accuracy / deviations
Temperature coefficient [1/K]± 0,07 % MW
Accuracy (in the measuring range)class 141: ± (2 % MW + 0,5 % MEW); class 344: ± (6 % MW + 0,6 % MEW) ; air quality to ISO 8573-1:2010; at medium temperature 73 °F
Repeatability± (0,4 % MW + 0,1 % MEW)
Pressure monitoring
Repeatability [% of the final value]± 0,2
Characteristics deviation [% of the final value]< ± 0,5; (BFSL = Best Fit Straight Line)
Greatest TEMPCO of the span [% MEW / 10 K]± 0,3
Greatest TEMPCO of the zero point [% MEW / 10 K]± 0,1
Temperature monitoring
Accuracy [K]± 0,5; (medium flow in the limit area of the flow measurement range)
Reaction times
Response time [s]0.1; (dAP = 0)
Damping process value dAP [s]0...5
Pressure monitoring
Response time [s]0.05
Temperature monitoring
Dynamic response T05 / T09 [s]T09 = 0,5
Software / programming
Parameter setting optionshysteresis / window; normally open / closed; current/pulse output; display can be rotated and switched off; Display unit; totalizer
Interfaces
Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9 CDV
ProfilesDigital Measuring Sensor (0x800A), Identification and Diagnosis (0x4000)
SIO modeyes
Required master port classA
Process data analog8
Process data binary2
Min. process cycle time [ms]7.2
Supported DeviceIDs
Type of operationDeviceID
default867
Operating conditions
Ambient temperature [°F]32...140
Storage temperature [°C]-4...185
Max. relative air humidity [%]90
ProtectionIP 65; IP 67
Tests / approvals
EMC
DIN EN 60947-5-9
Vibration resistance
DIN EN 68000-2-65 g (10...2000 Hz)
MTTF [years]183
UL approval
UL approval numberI012
File number ULE174189
Pressure equipment directivesound engineering practice; can be used for stable gases fluid group 2
Mechanical data
Weight [g]1581
MaterialPBT+PC-GF30; PPS GF40; stainless steel (1.4301 / 304); stainless steel (1.4305 / 303); steel (1.5523) galvanized; 2.0401 (brass / CW614N); FKM
Materials (wetted parts)stainless steel (1.4301 / 304); stainless steel (1.4305 / 303); FKM; ceramics glass passivated; PPS GF40; Al2O3 (ceramics); acrylate
Process connectionthreaded connection 1" NPT DN25
Displays / operating elements
Display
Color display 1,44", 128 x 128 pixels
2 x LED, yellow
Remarks
Remarks
MW = Measured value
MEW = Final value of the measuring range
Measuring, display and setting ranges refer to standard volume flow according to DIN ISO 2533.
For information about installation and operation please see the operating instructions.
Pack quantity1 pcs.
Electrical connection
ConnectionConnector: 1 x M12; coding: A
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — SD8501-00 — 13.04.2023 —
