Centrica PanPower Bridge V4+ LAN / WIFI / 4G LTE w/ Panel
$570.00 - $850.00
Tags:

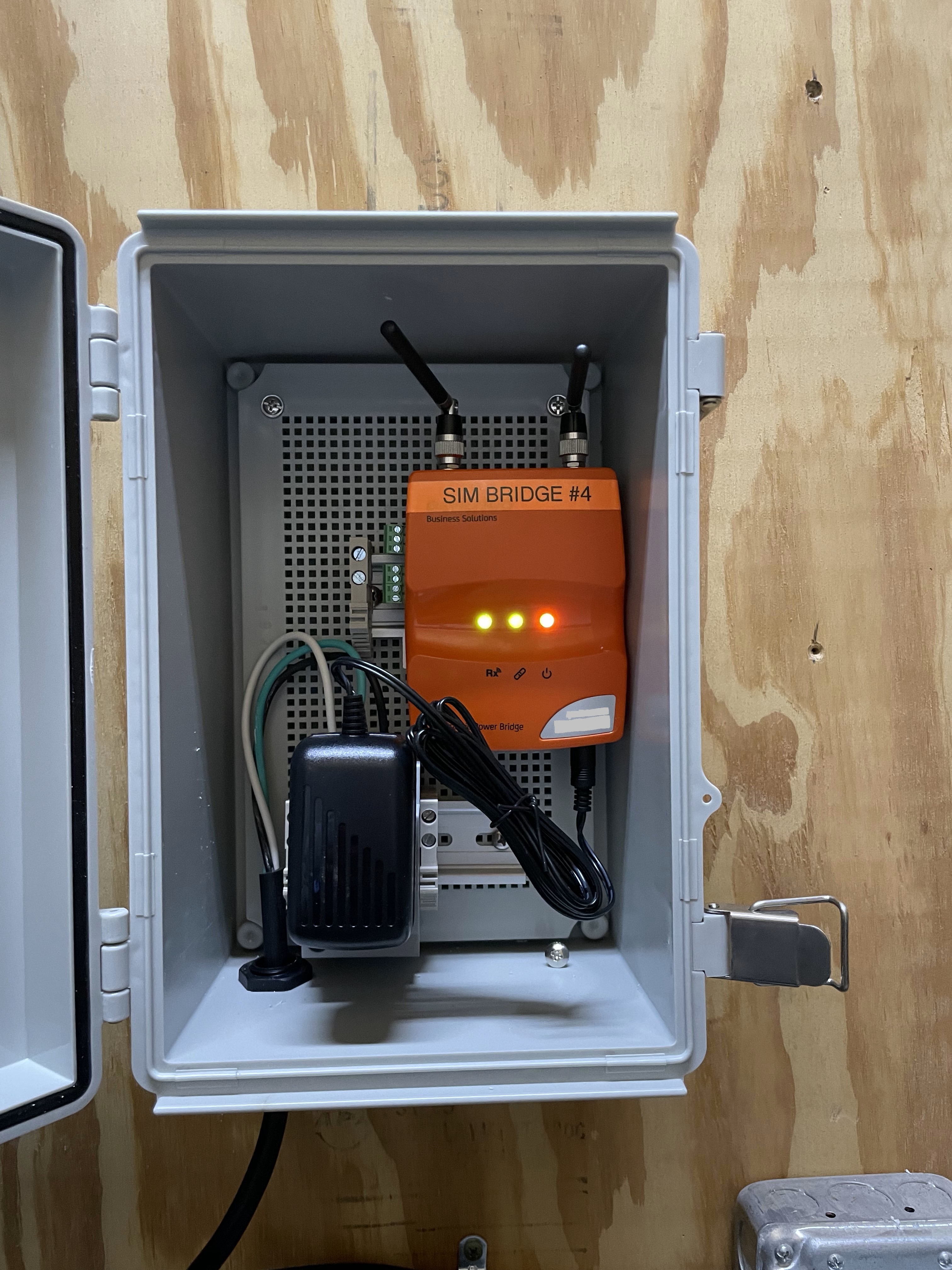

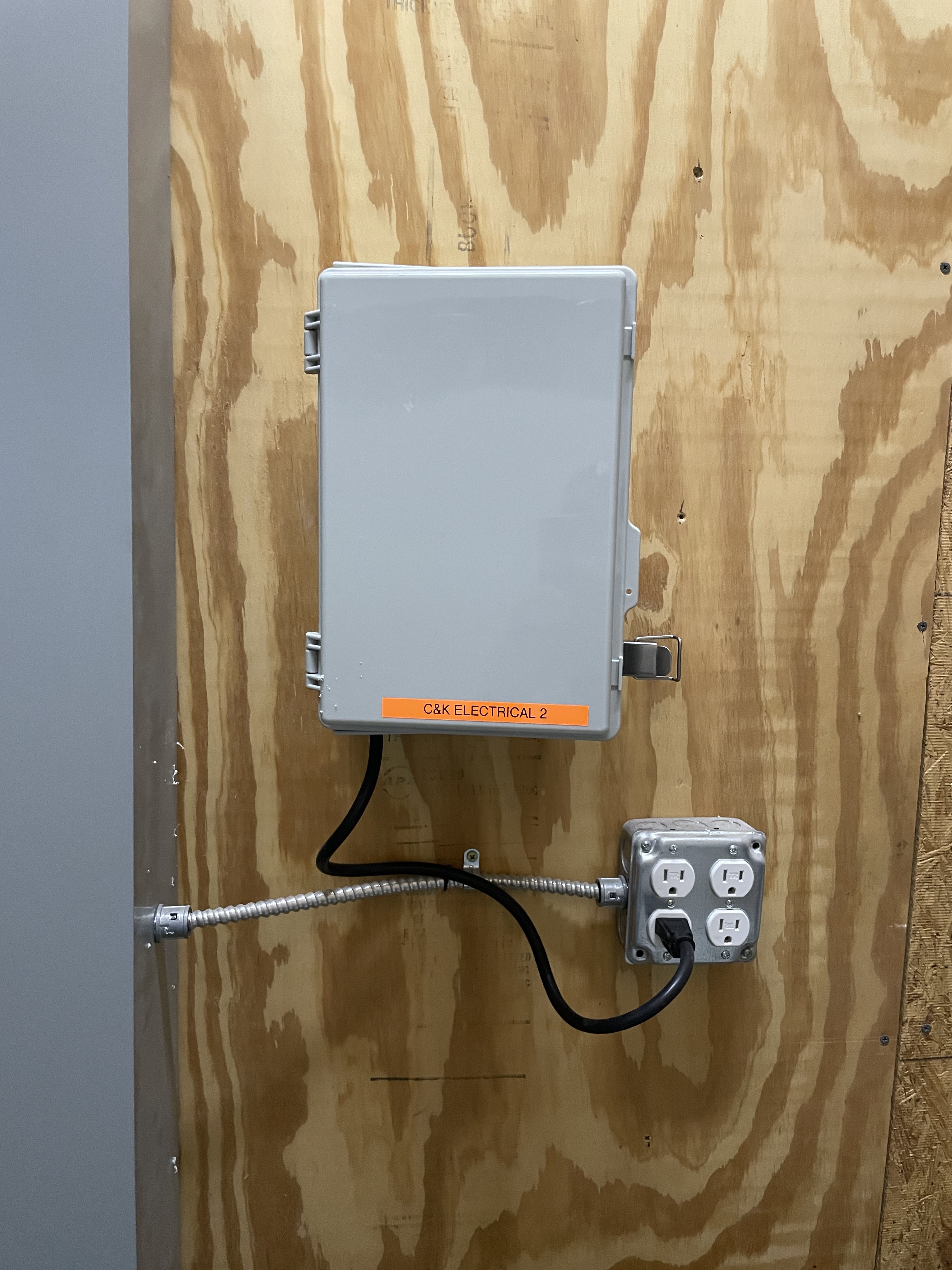

Our ABS enclosure is ready to install and includes the Panoramic Power Gen 4+ Bridge, 120VAC outlet, 10' cord whip, din rail and terminal blocks, providing quick installation for our customers that are looking for a turnkey product solution. The panel includes mounting brackets and stainless latches and can be used on both indoor and outdoor installation.
The Panoramic Power Bridge delivers energy intelligence from our wireless sensors and power meters for visualization and analysis in our energy management platform, PowerRadar. Customers retain the flexibility to use the software of their choice by using the Modbus TCP interface to export and manage the data locally – directly from the Gen 4+ Bridge.
• Plug-and-play installation with flexible mounting options
• Store capability in case of network loss
• Field-upgradable firmware
• Initial configuration (built-in web interface)
• Integrates with 3rd party meters for gas, heat, air and water
• Over-the-air upgrades can be enabled to receive latest firmware automatically from PowerRadar
• Store capability in case of network loss
• Field-upgradable firmware
• Initial configuration (built-in web interface)
• Integrates with 3rd party meters for gas, heat, air and water
• Over-the-air upgrades can be enabled to receive latest firmware automatically from PowerRadar
Local MODBUS TCP/IP Server operations supports up to 32 devices per bridge that is within the wireless range of the bridge.
Connectivity Options
Choose Quantity
Product Details
Specifications
Our Panoramic Power Gen 4+ Bridge delivers energy intelligence from our wireless sensors and power meters for visualization and analysis in our energy management platform, PowerRadar. Customers retain the flexibility to use the software of their choice by using the Modbus TCP interface to export and manage the data locally – directly from the Gen 4+ Bridge.
• Plug-and-play installation with flexible mounting options
• Store capability in case of network loss
• Field-upgradable firmware
• Initial configuration (built-in web interface)
• Integrates with 3rd party meters for gas, heat, air and water
• Over-the-air upgrades can be enabled to receive latest firmware automatically from PowerRadar
• Store capability in case of network loss
• Field-upgradable firmware
• Initial configuration (built-in web interface)
• Integrates with 3rd party meters for gas, heat, air and water
• Over-the-air upgrades can be enabled to receive latest firmware automatically from PowerRadar
Local MODBUS TCP/IP Server operations supports up to 32 devices per bridge that is within the wireless range of the bridge.

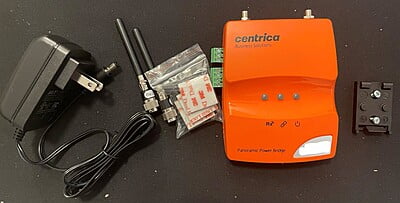

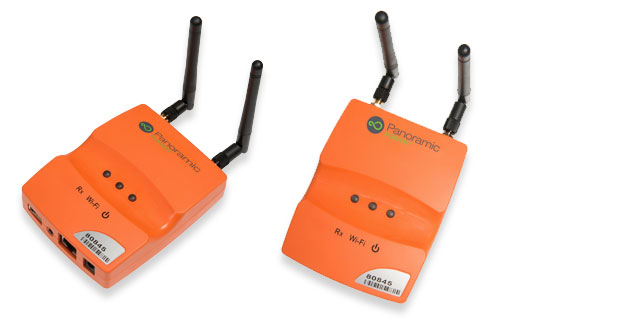

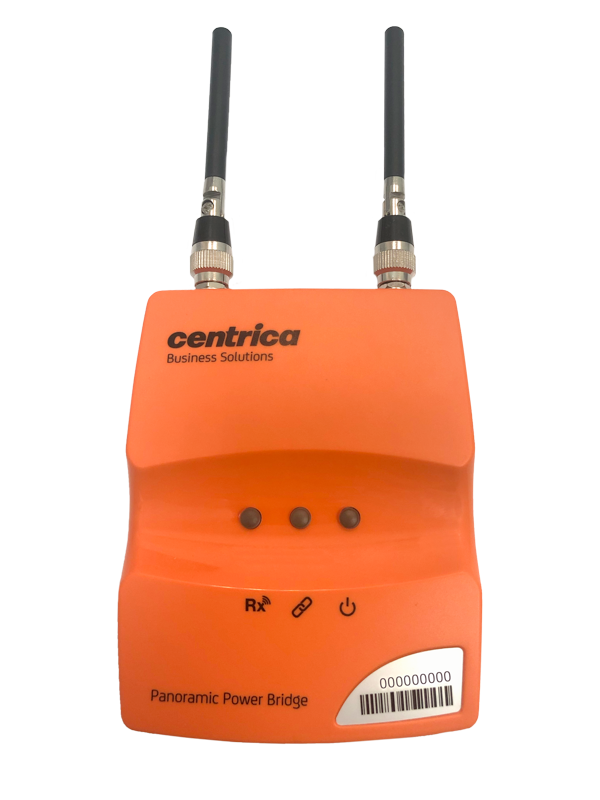

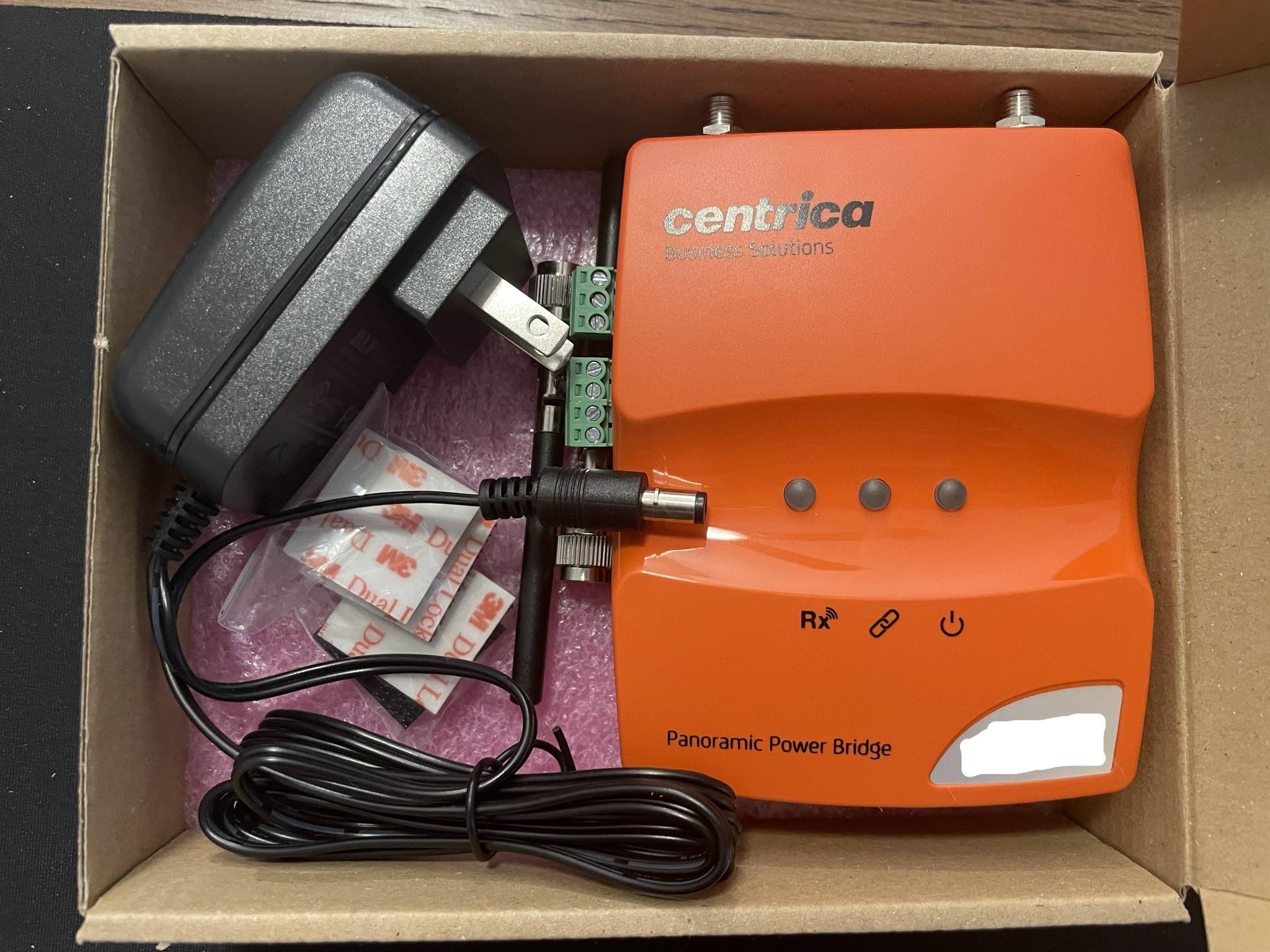

Centrica Bridge
- Physical dimensions (without antennas)4.4 x 3.4 x 1.4 inches
- Weight.33 lbs
- Power adapter (included)Input: 100-240 VAC 50-60Hz, Output: 5 VDC
- Power consumption5 Watt max
- Sensor reception sensitivity-105 dBm
- Cellular bands (MHz)4G LTE through ATT IOT SIM. This option only available on 4G LTE variant
- Wi-Fi protocol802.11 b/g/n
- Wi-Fi security protocolWEP64, WEP128, WPA, WPA2, WPA2-Enterprise
- CompressionSensor messages are collected and sent once every 10 seconds to reduce bandwidth
- AuthenticationCHAP protocol used by the server to verify connected bridge’s identity
- CertificationUSA Safety: UL 61010-1, UL 61010-2-030
- Flammability rating (enclosure)UL94 V-0
- Ingress protection (IP) ratingIP5X
- Operating temperature-25 – 60°C / -13 – 140°F
- Operating humidity range5% – 95% non-condensing
- Storage temperature-25 – 65°C / -13 – 149°F
- Pulse interface2x KY inputs (5 V open voltage, 0.9 mA max current, 5 ms minimum pulse width
