100 Amp (0-5A) Current Transformer (CT)
100 Amp (0-5A) Current Transformer (CT)

100 Amp (0-5A) Current Transformer (CT)

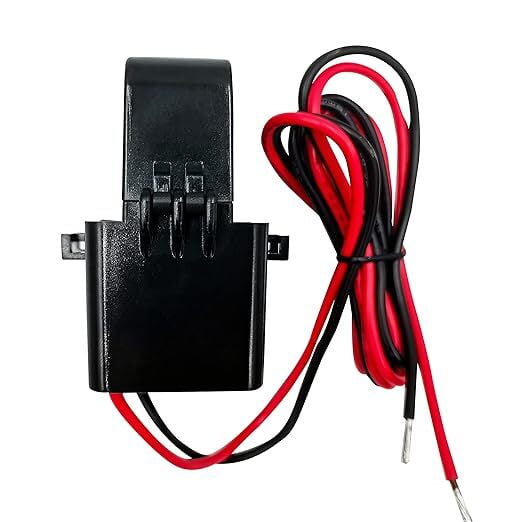

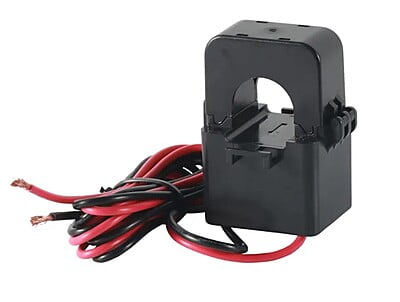

AC Current 100 Amp AC Current Transformer (CT) is mounted around a current carrying wire to measure AC Amperage. This CT provides 0-5 Amp output proportional to the measured current and is used with the PAN-14 or PAN-42 sensors. The result is accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. These CTs should be ordered in sets of 3 for measurement of a 3 phase circuit.
Choose Quantity
+ Add to Cart
Product Details
  • UL recognized

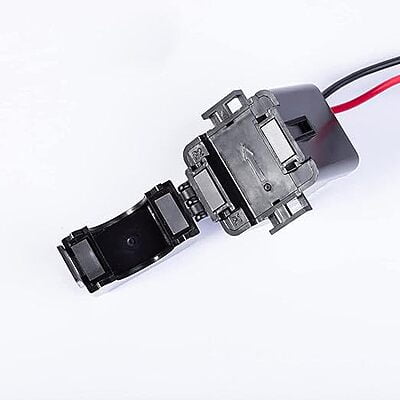

  • Split-core design for fast, easy installation
  • 3 ft. 16 AWG leads

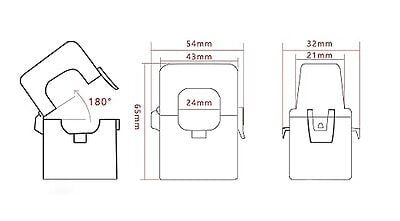

  • Opens through swivel hinge. Inside dimension is 1.0" x 1.0"
  • Rated input from 1 Amp to 100 Amp
  • Output 0 - 5 Amps at rated current
  • Operates from 30 Hz to 1,000 Hz
  • Phase angle < 2 degrees measured at 50% rated current
  • Linearity accuracy ± 1%
  • UL, c(UL) recognized, CE, and RoHS compliant
  • Accuracy at 10% to 130% of rated current
