VP Dew Point Sensor start kit
VP Dew Point Sensor start kit
VP Dew Point Sensor start kit

VP Dew Point Sensor start kit


Encountering humidity in your pipes is acceptable to a certain level, but you don’t want to exceed the acceptable limits. In order to stay in control of your humidity by managing your temperature and pressure levels, you need dew point transmitters.

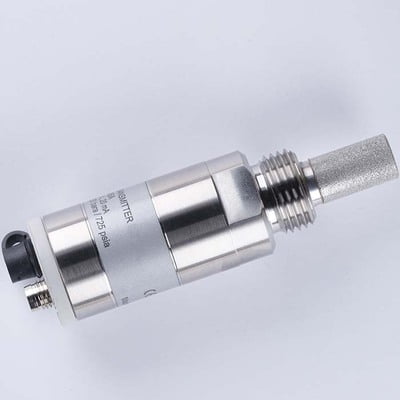

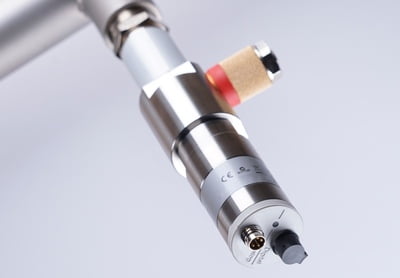

The VP Dew Point Sensor is the smart dew point transmitter with a large measurement range of -70..+60 ⁰C; so you can measure downstream a refrigerant type dryer as well as a desiccant-type dryer. The sensor has an alarm LED. The sensor itself is robust and smart with its autocalibration functionality. With the outputs both 4..20 mA and RS485 (Modbus RTU), you can connect the sensor to VPVision, VPCompass or any other management system. With the VP Dew Point Sensor start kit, you have all you need to start measuring right-a-way!

Features/ Benefits

  • Built-in alarm function and LED
  • Sensor highly resistant to condensation and particulate contamination
  • RS485 (Modbus RTU) and 4..20 mA output
  • Auto-calibration
  • Sample block with bleed valve


  • Monitoring of refrigerant and desiccant-type air dryers
  • Sizing of dryers
  • Permanent measurement
  • Guarding of critical process e.g. in semiconductor and automotive industry

Your order will include:

  • VP Dew Point Sensor
  • Sampling block
  • Cable 10m / 32.8ft
  • Quick connector
  • 1/4″ Male connector
  • Leak screw with sound muffler
  • Calibration certificate
Choose Quantity
+ Add to Cart
Product Details


Dew point range-70 .. +60° C | -94 .. 140° F dew point
Temperature-40 .. +60° C | -40 .. 140° F
Humidity 0 .. 100% RH
Pressure0..50 bara | 725 psia
Output4 .. 20 mA and RS485 (Modbus RTU)
SensorThis film polymer
