S7100 3-PHASE METER WALL MOUNT

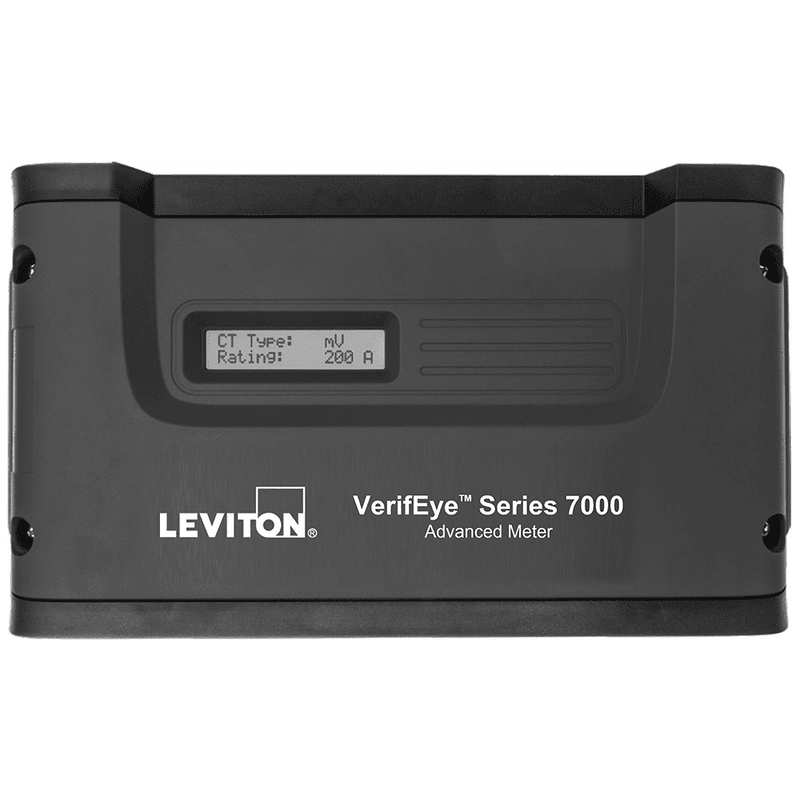

Leviton Series 7100 VerifEye Advanced 3-Phase Meter with LCD, NEMA 1 wall mount enclosure
Leviton 71D03 Offers
Monitor the voltage, current, power, energy, and many other electrical parameters with this 3-phase meter. Help lower the total cost of collecting data by reducing install complexity and increasing flexibility with this meter. In addition, this meter's plug-and-play integration ensures that the full complement of data points is captured immediately and made available for countless applications.
Support all industry-standard communications protocols with this meter, which includes RS-485, BACnet MS/TP, BACnet IP, Modbus TCP, and Ethernet for maximum flexibility. Moreover, as a circuit approaches the user-configured threshold, alarm indicators are triggered to prevent costly downtime from overloaded circuits or failed loads.
Features
- Monitors a single three-phase circuit: Configuration options for 1-pole or 2-pole loads, solid core CTs (100 and 200 A), split core CTs (50 to 800 A), Rogowski coil CTs (5 to 4000 A)
- Line powered from 90 to 600 V, phase-to-phase
- ANSI and IEC metering system accuracy including branch CTs
- Meter board features: Easy access terminals for CT wiring, removable connectors and easily route cable and view LEDs from any angle
- Reports volts, amps, power, demand and energy for each circuit
- Provides multi-phase totals for loads with 1-, 2-, and 3-pole breaker positions
- User-configurable alarm thresholds register for improved load management
- Selectable phase orientation
- NEMA 1 wall mount enclosure
- LCD
- Thumb wheel
- Voltage connector under cover
- Voltage cover
- USB C
- Ethernet
- Alarm
- 3 x CT inputs
- Enclosure: Indoor
- Communication: ModBus, BACnet MS/TP, ModBus TCP or BACnet IP
- Listings: CE EN 61000-6-4: Class A, UL listed (indoor enclosure version only), UL recognized (circuit board version only)
Capabilities (measured parameters: all parameters for each phase and system total)
- Volts
- Amps
- kW
- kVAR
- kVA
- aPF
- dPF
- kW demand
- kVA demand
- Import (received)
- kWh, export (delivered)
- kWh
- Net kWh
- Import (received) kVAh
- Export (delivered) kVAh
- Net KVAh, import (received)
- kVARh, export (delivered)
- kVARh
- Net kVARh
- THD theta
- Frequency
Applications
- Real-time power monitoring for: Commercial, industrial, higher education/campuses
- Data centers
- Tenant submetering
Renewable energy monitoring with VerifEye: Measurement and verification designed for renewable energy applications
Track all reneweable energy data ensuring accuracy in billing and crediting
This advanced three-phase meter feature bidirectional monitoring specifically designed for renewable energy applications. This meter measures power imported from the utility grid and power exported from renewable energy sources such as solar panels. In addition, this allows facility managers to track all energy data, ensuring accuracy in billing and crediting.
Challenge: Facility has incorporated renewable energy technologies, including wind and solar, into their building's design
- Renewable technology will not always be able to supply all the building's power supply needs, and may create a surplus of power or little to no power depending on the season and as a result, the building is also connected to the main power grid
- Facility management must accurately account for what energy is coming from and going in order to properly bill tenants or receive a credit from the electricity company for how much power must be paid for
- Solution must meet California Title 24 2022 submetering requirements and be approved for the California Solar Initiative
Solution: This meter is designed to accurately track imported and exported power for renewable energy applications
- Measures power imported from the utility grid and power exported from renewable energy sources, including wind turbines and solar panels
- Seamlessly communicates with data acquisition and building automation solutions
- Measures electricity flow in two directions, showing how much energy has been consumed and how much clean power has been fed back to the utility grid
- Meets all applicable California Title 24 2022 submetering requirements and is CSI approved for the California Solar Initiative
What you will need
- Advanced 3-phase meter with LCD
- EMH hub: Intelligent, flexible data acquisition server that collects energy data through ModBus protocol (sold separately)
- BMO: BMO energy management software (sold separately)
Flexible submetering solutions for multiple applications: Load profiling and energy monitoring for industrial and commercial buildings with this meter
Complete metering solutions by VerifEye: Cost-effective and flexible industrial metering solutions
Growing demand for building owners to meet energy codes, lower demand charges, allocate costs and bill tenants has increased the need for a flexible, cost-effective submetering solution. Combined with the challenge of installing equipment in existing buildings, building owners and facility managers need flexible solutions that work in a variety of locations and applications.
This meter satifies theses requirements with a versatile platform featuring revenue grade accuracy, universal voltage and CE compliance, NEMA 1 wall mount enclosure, and industrial temperature range.
Challenge: A contractor needs to install a submeter for use in a variety of global applications and environments while staying within a budget
- Varying environmental factors such as temperature and humidity
- Mounting requirements vary by site
- Voltage and frequency vary by location
- Load sizes and requirements vary by site
- Certifications required for project
- Revenue-grade accuracy required in certain project locations
Solution: A cost-effective, easy-to-use submetering solution for multiple locations and a variety of applications
- This meter offers industrial temperature ratings of -4 to 140°F (-20 to 60°C)
- NEMA 1 wall mount enclosure
- International compliance for both 50/60Hz and 600 V applications as well as CE certification
- Universal voltage range (90 to 600 V AC) and Rogowski rope CTs allow for flexible amperage readings of 20 to 4000 A
- Revenue grade accuracy for billing (ANSI C12.20 0.5%)
What you will need
- Advanced 3-phase meter with LCD
- EMB hub: Energy monitoring EMB hub with line voltage power supply, NEMA 4X enclosure (sold separately)
- BMO: BMO energy management software (sold separately)
Leviton 71D03 Specifications
| Service Type | 1P/2W, 2P/3W, 3P/4W, 3P/3W (Delta) Single phase, split phase, three phase-four wire (WYE) |
| Power | From L1 phase to L2 phase, 90 to 600 V AC RMS CAT III 50/60 Hz, 500 mA AC maximum Out: Unregulated 12 V DC output, 200 mA, self-resetting fuse |
| AC Protection | 0.5 A fuse 200 kA interrupt capacity |
| Channels | Voltage: 90 to 346 V AC line-to-neutral, 600 V line-to-line, CAT III Current: 3 channels, 0.525 V AC maximum, 333 mV CTs, 0 to 4000 A depending on CT |
| Maximum Current Input | 150% of current transducer rating (mV CTs) to maintain accuracy. Measure up to 4000 A with Rogowski coil CTs |
| Measurements | Volts, amps, kW, kVAR, kVA, aPF, dPF, kW demand, kVA demand, import (received) kWh, export (delivered) kWh, net kWh, import (received) kVAh, export (delivered) kVAh, net kVAh, import (received) kVARh, export (delivered) kVARh, net kVARh, THD, theta, frequency. All parameters for each phase and system total. Type: True RMS using high-speed Digital Signal Processing (DSP) with continuous sampling |
| Accuracy | 0.2% ANSI C12.20-2010 Class 0.2 |
| Line Frequency | 50/60Hz |
| Waveform Sampling | 1.8 kHz |
| Parameter Update Rate | 1 second |
| Resolution | Values reported in IEEE-754 single precision floating point format (32 bit) |
| Indicators | 4-line display, tri-clor backlight (PhaseCheck™) |
| Alarm Output | Over/under voltage and current (SPDT relay - 30 V DC) |
| Wire Connections | 12 to 22 AWG 600 V AC, voltage connection must be #14 AWG or larger and 600 V AC rated |
| Mounting | NEMA 1 wall mount enclosure PCBA: 0.5" standoffs #6 (quantity 6, user supplied) |
| High Voltage Cover | IP30 (embedded version) |
| Hardware | RS-485, Ethernet and USB (for configuration only) |
| Supported Protocols | ModBus, BACnet MS/TP, ModBus TCP or BACnet IP |
| Communication Rate (Baud) | ModBus: 9600 (default), 19200, 38400, 57600, 76800, 115200 BACnet: 9600 (default), 19200, 38400, 76800 |
| Maximum Distance | ModBus RTU - 4000' (1200 m) maximum, other network protocols follow standard network management practices |
| RS-485 Loading | ⅛ unit |
| Data Bits | 8 |
| Parity | None, even, odd |
| Stop Bit | 2, 1 |
| Environmental | Operating temperature: -4 to 140°F (-20 to 60°C) at -4°F (-20°C), LCD display could be illegible, meter voltage at -4°F (-20°C) must exceed 100 V AC to power the meter Operating humidity: 5 to 95% non-condensing |
| Codes and Standards | Accuracy and billing: ANSI C12.20 Class 0.2, NIST traceable calibration Listing/safety: CE EN 61000-6-4: Class A, UL listed |
| Enclosure | ABS plastic, 94-V0 flammability rating, connections sized for 1" EMT conduit |
| Dimensions | NEMA 1 wall mount enclosure: 5.5 x 10.11 x 2.11" (139.2 x 256.9 x 53.5 mm) up |
