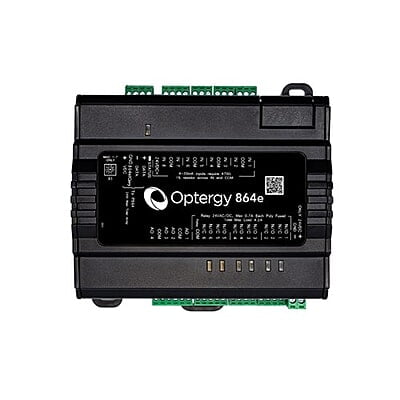

Optergy P864e Expansion Module
Net Pricing Shown - Dealer Discount Applied

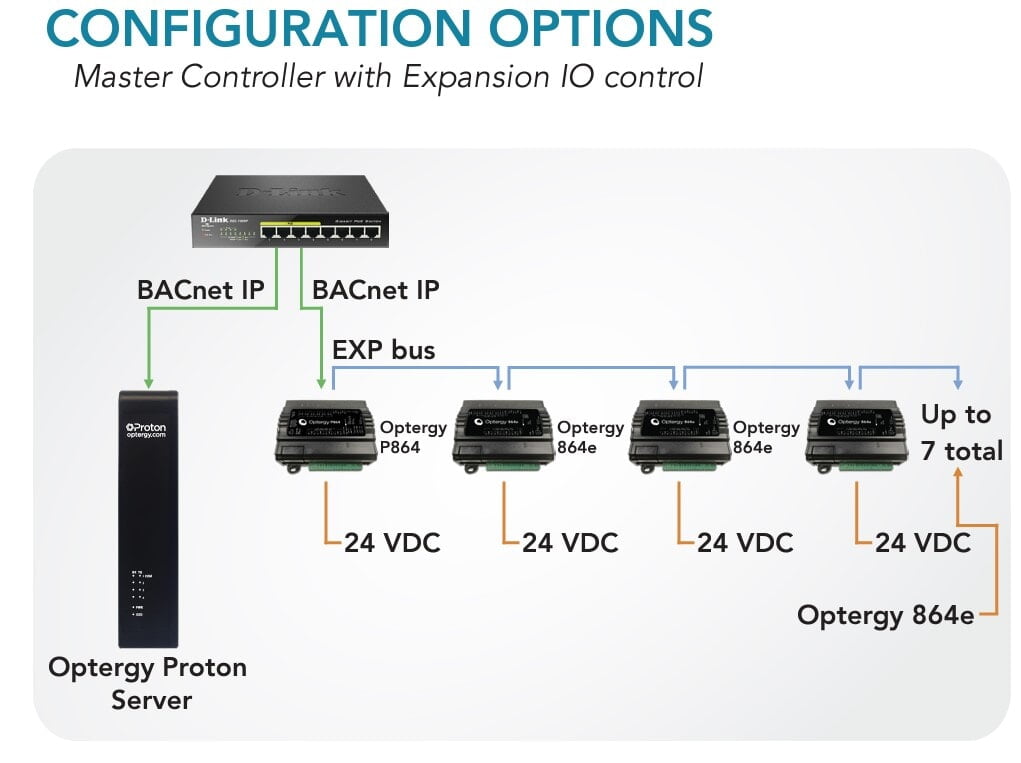

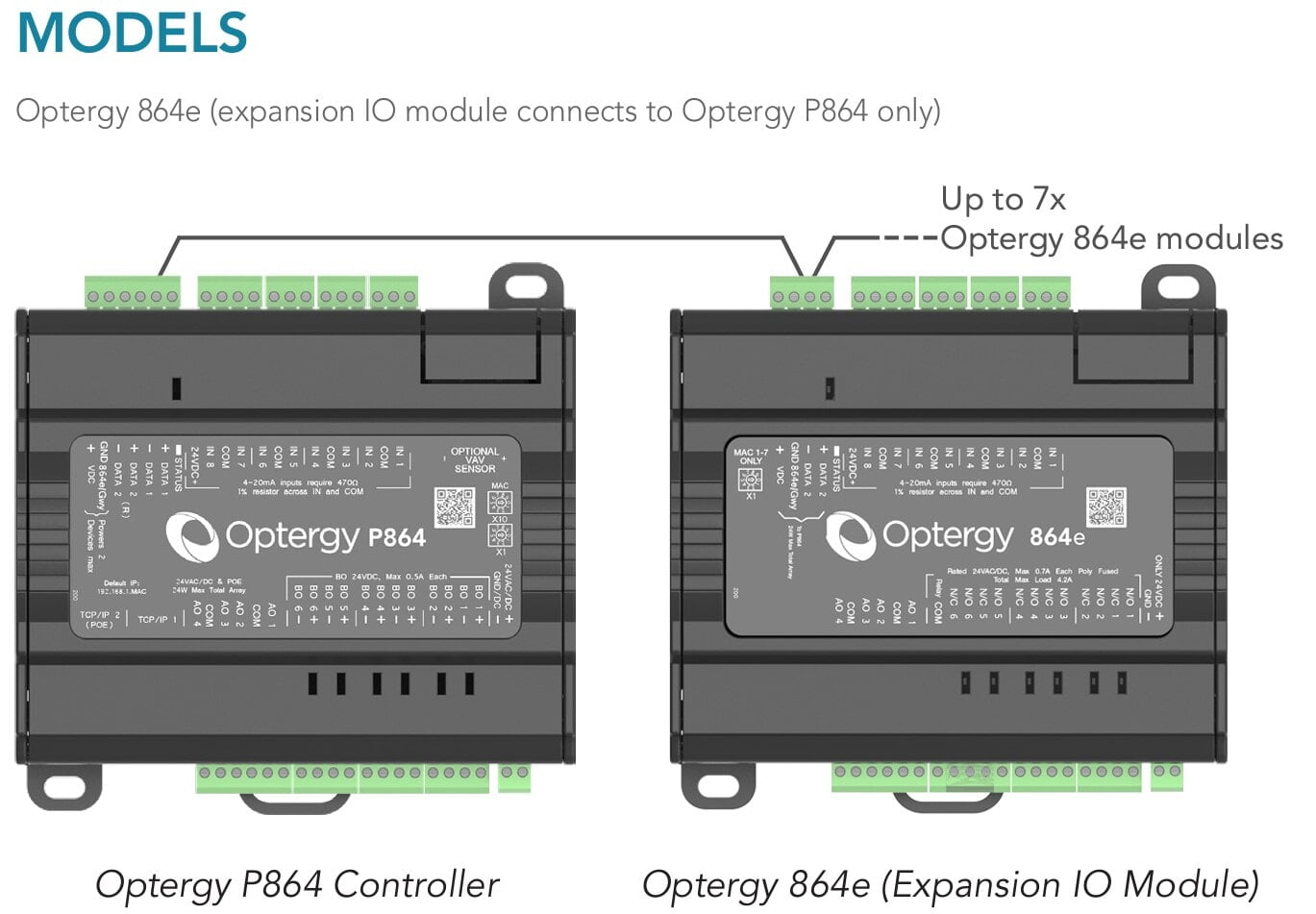

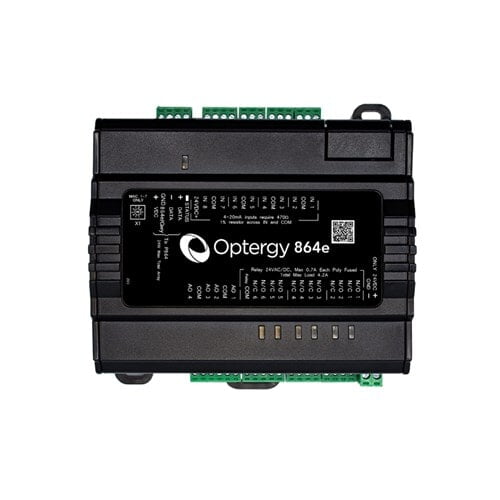

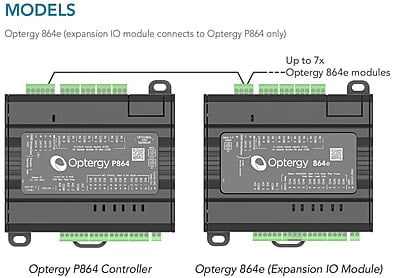

The Optergy 864e is an input and output (IO) expansion module for use with the Optergy P864 controller. It can be expanded to a total of 144 hardware points using a Optergy P864 and by adding up to 7 additional Optergy 864e modules. Expansions are added to the Optergy P864 by simply "daisy-chaining" the data cable connection which comes in the box with each unit.
KEY FEATURES
General
• Input and output setup
• Expanded Optergy P864 count as 1 device for Optergy software licensing
• Program logic, schedules/trends/alarm/calendars are managed in Optergy P864
• 24 VDC power supply (for sensors and other devices)

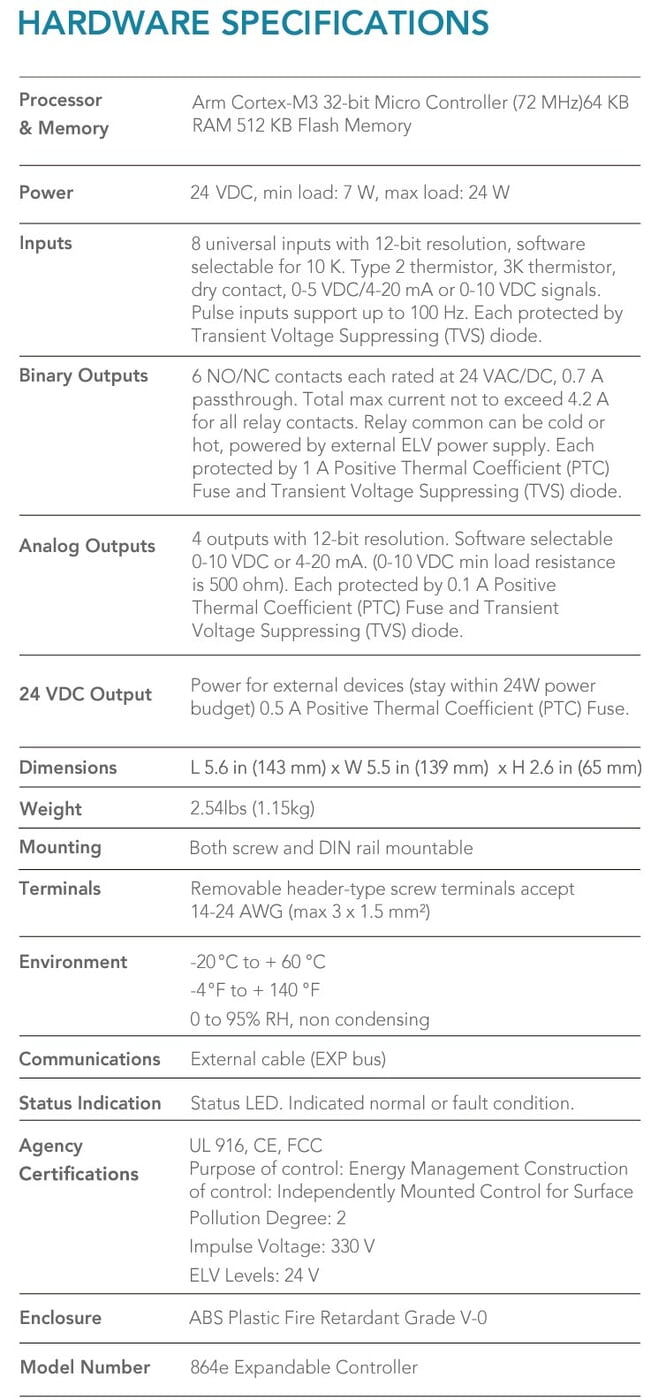

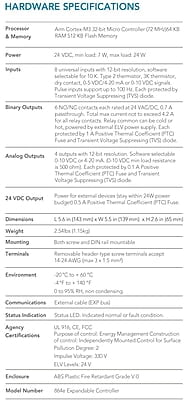

Hardware
• 8 x universal inputs (12 bit resolution)
• 6 x binary outputs (relay NO/NC contacts)
• 4 x analog outputs (12 bit resolution)
• Powered via 24 VDC
