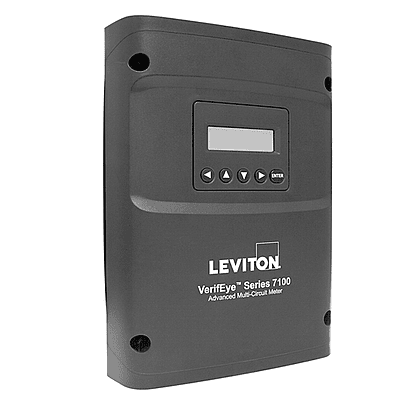

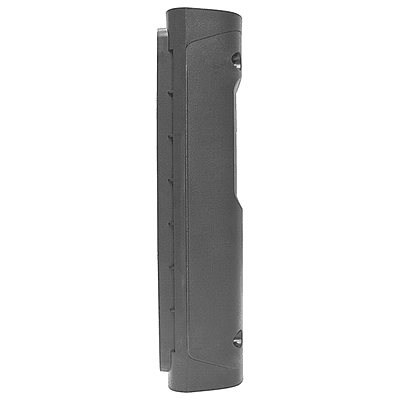

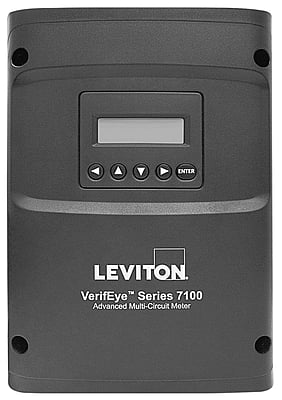

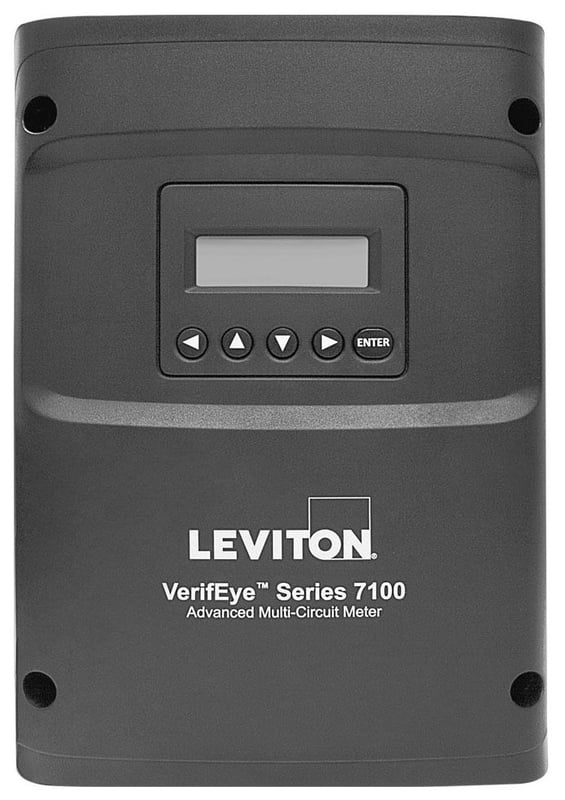

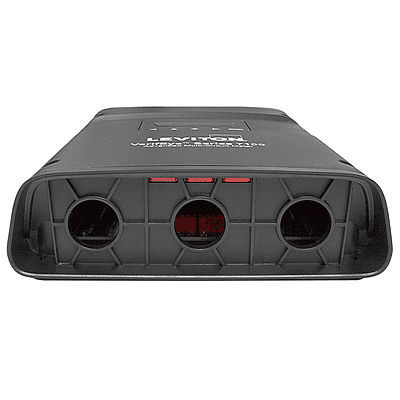

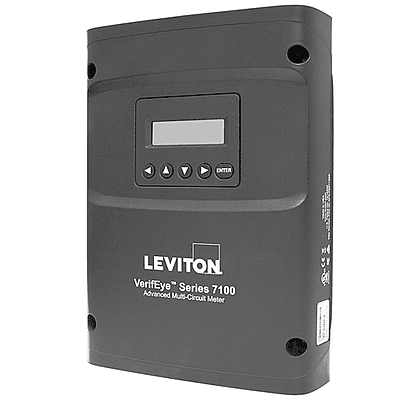

Leviton 71D48 S7100 BCM 48 Inputs With Display
$3,000.00
Tags:
Description
| The VerifEye™ Series 7000 and 7100 Advanced Branch Circuit Monitor is a cost-effective solution for electrical load management. The Series 7000 and 7100 platform is ideal for high density, branch circuit monitoring applications in both new construction and retrofit applications. The Series 7000 and 7100 monitors up to 48 branch circuits with one single meter board. |
| Leviton® VerifEye™ Branch Circuit Monitor, 48-Circuit Advanced, 90 to 600 VAC, 5 to 4000 A, 50/60 Hz Frequency, 0.2 % Accuracy, LCD Display, NEMA 1 Enclosure, 13.25 in L x 9.87 in W x 3.14 in D |
Specifications
| ACCURACY | 0.2 % |
| Amperage Rating | 5 to 4000 A |
| Application | Indoor Data Centers, Tenant Energy Monitoring, Energy Allocation, Energy Management, Load Monitoring and Building Code Compliance, Commercial and Industrial Applications |
| Dimensions | 13.25 in L x 9.87 in W x 3.14 in D |
| Enclosure | NEMA 1 |
| Frequency Rating | 50/60 Hz |
| Manufacturer Part Number | 71D48 |
| Series | 7100 Series |
| Standards/Approvals | ANSI C12.20-2010 Class 0.2 |
| Type | 48-Circuit Advanced |
| Voltage Rating | 90 to 600 VAC |
| Manufacturer: | LEVITON MFG CO. |
| Product Description: | Leviton 71D48 S7100 Bcm, 48 Inputs With Display |
| Sub-Category: | Industrial Power Quality Monitor |
| UNSPSC: | 41113637 |
| UPC 12 Digit: | 078477969915 |
| Unique Product Key: | 6913467 |
| comm code enhanced: | 49900 |
Choose Quantity
Product Details
Features
| ▪ Selectable phase orientation and number of circuits |
| ▪ 48 in dependent, user defined inputs |
| ▪ Two independent sets of reference voltage inputs allow for simultaneous monitoring of multiple systems |
| ▪ Line powered from 90 to 600 V, phase-to-phase |
| ▪ Meets ANSI and IEC metering system accuracy requirements including branch CTs |
| ▪ Supports solid core, split core and Rogowski coil CTs |
| ▪ Meter board features - easy access terminals for CT wiring, removable connectors |
| ▪ Reports volts, amps, power, demand and energy for each circuit - each series 7000 covers a complete 42 breaker panelboard plus mains for a total of 48 circuits |
| ▪ Provides multi-phase totals for loads with any combination of 1, 2 and 3-pole breaker positions |
| ▪ User configurable alarm thresholds register for improved load management |
