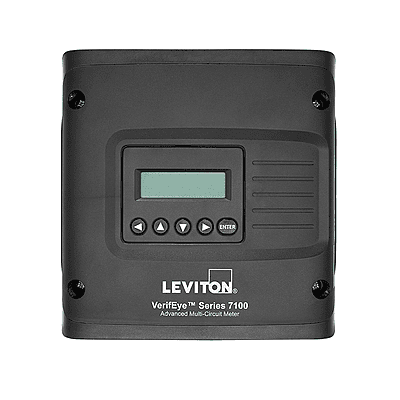

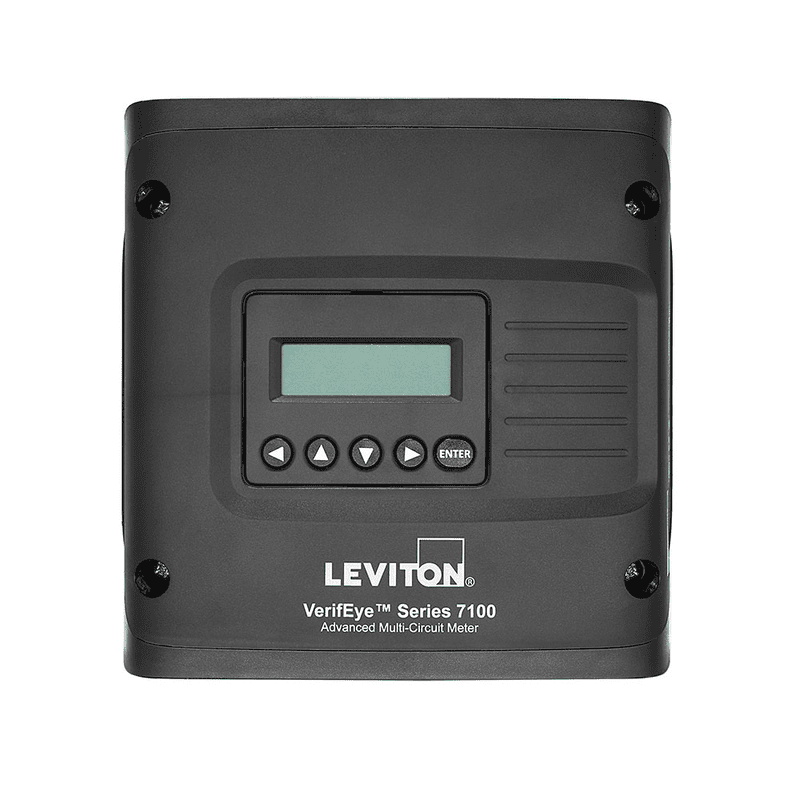

Leviton 71D12 S7100 BCM 12 Inputs With Display
$1,500.00
Leviton® VerifEye™ 71D12 7100 Embedded Electric Submeter Branch Circuit Monitor, 90 to 600 VAC, 5 to 4000 A, 50/60 Hz
Description
| The VerifEye™ Series 7000 and 7100 12 circuit advanced branch circuit monitor is an ideal fit for submetering application requiring more than a single, three phase meter, but less than the full capacity of the 48 circuit model of the series 7000 and 7100 family. | ||||||||||||||||||||||||

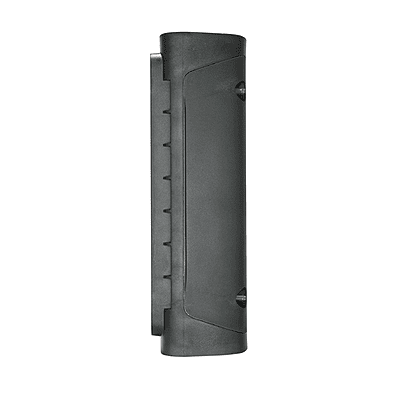

Leviton® VerifEye™ Branch Circuit Monitor, Embedded Electric Submeter, Series: 7100, 90 to 600 VAC, 5 to 4000 A, 50/60 Hz Frequency, 0.2 % Accuracy, LCD Display, 3 ph, NEMA 1/IP30 Enclosure, 9.87 in W x 3.14 in D x 9.75 in H DimensionsSpecifications
|
Choose Quantity
Product Details
Features
| ▪ Easily route cable and view LEDs from any angle |
| ▪ Reports volt, amp, power, demand and energy for each circuit |
| ▪ Configurable for four individual load, which can be a combination of single-phase, two-phase or three-phase circuit |
| ▪ Please consult factory for capacity limitation for any other configuration |
| ▪ User configurable alarm threshold register for improved load management |
| ▪ Selectable phase orientation and number of circuit |
| ▪ 12 independent, user defined input |
| ▪ 12 individual panel circuit |
| ▪ Four three-phase load |
| ▪ 200 to 400A CTs |
| ▪ User configured combination |
| ▪ Line powered from 90 to 600 V, phase to phase |
| ▪ ANSI and IEC metering system accuracy including branch CTs |
| ▪ Supports split core and rogowski coil CTs |
| ▪ Meter board feature - easy access terminal for CT wiring, removable connector |
