EES-101 Ultrasonic Water Meter (1" - 48" Pipe Size)

$1,950.00 - $2,050.00

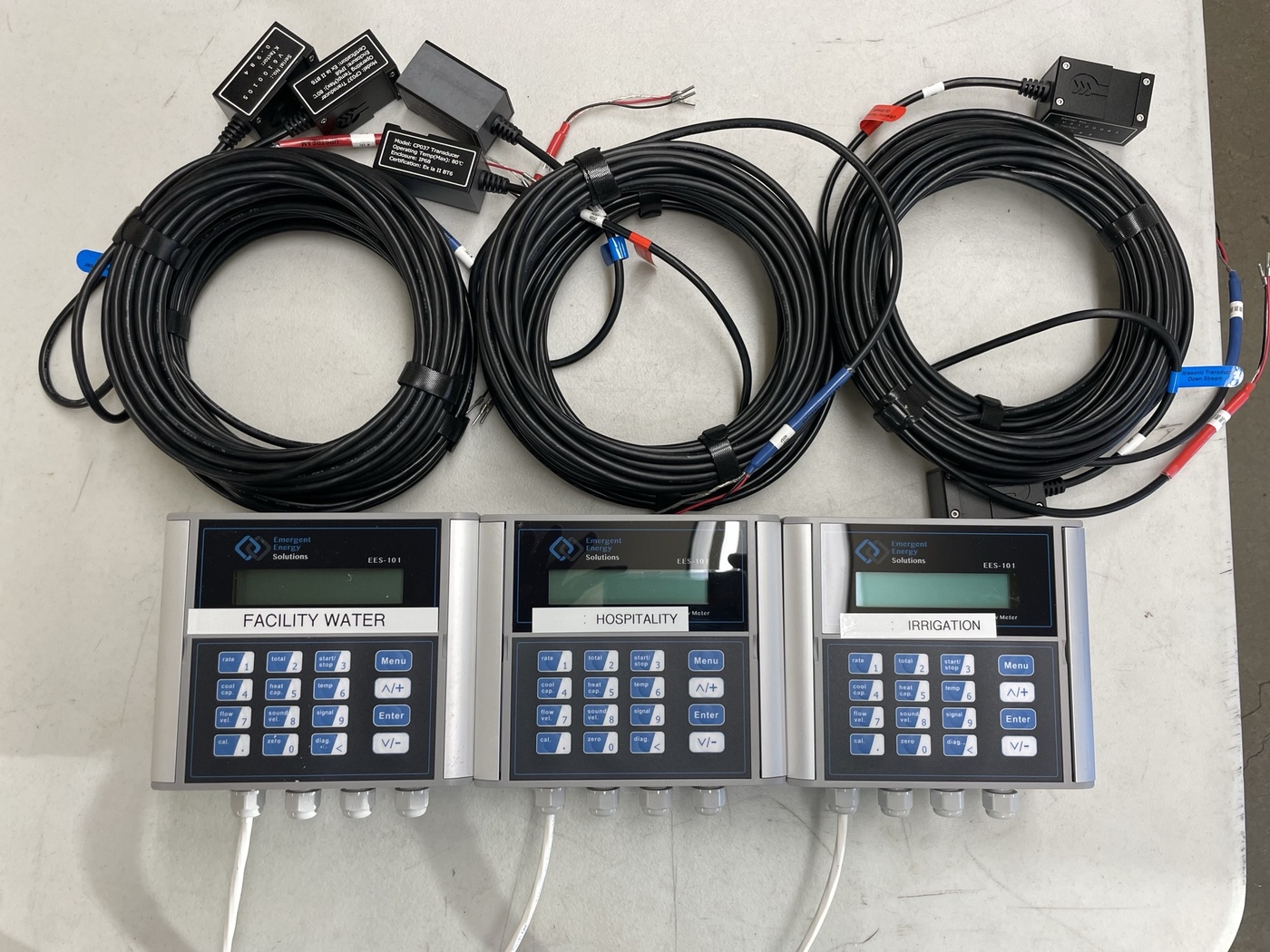

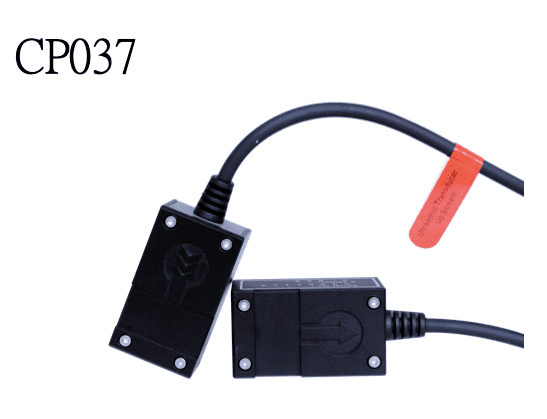

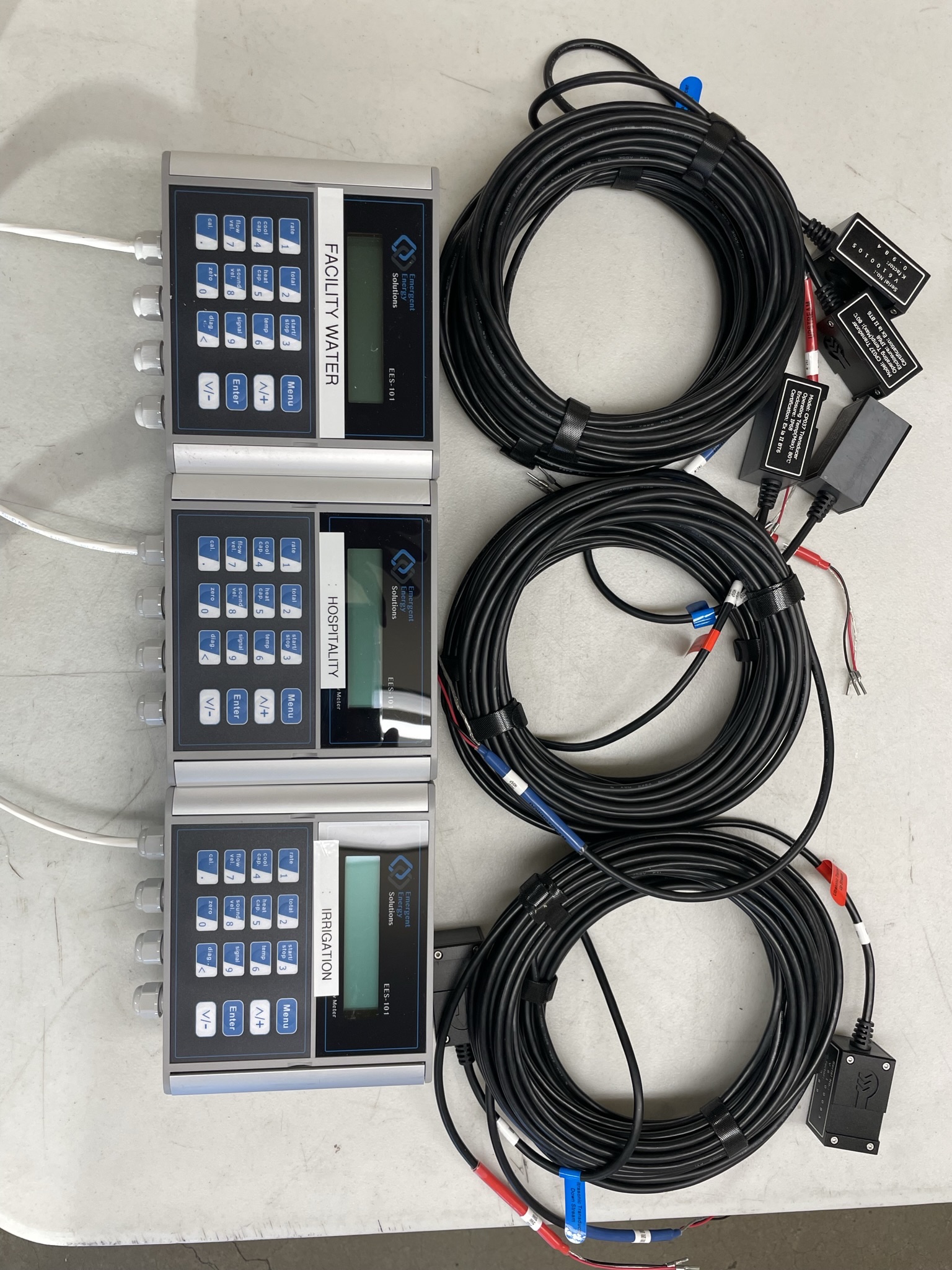

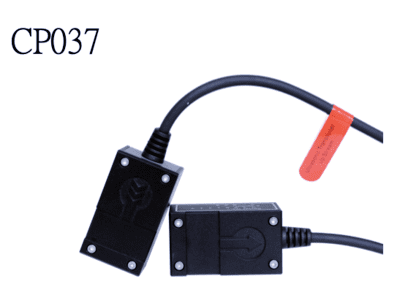

EES-101 Ultrasonic Flowmeter with Clamp on transducer and clamp on temperature sensors, Pipe Size Range:1”~48” (25mm ~ 1200mm). Operating temperature: 32°F ~ +140°F (0°C~+60°C). Transducer Cable Length :Standard 30ft (9m)

This meter is used to track water flow and can be installed onto single use water or closed circuit chilled or heating water loops. Applications are wide ranging but our customers typically seek to use this meter to reduce water consumption and or as a proof of flow through their system.

Typical pipe material applications:

  • Copper (Varying thicknesses to be set by user)
  • PVC (Varying schedules)
  • Carbon Steel (Varying schedules)
  • Rigid (Must be rust free on the inside of pipe)

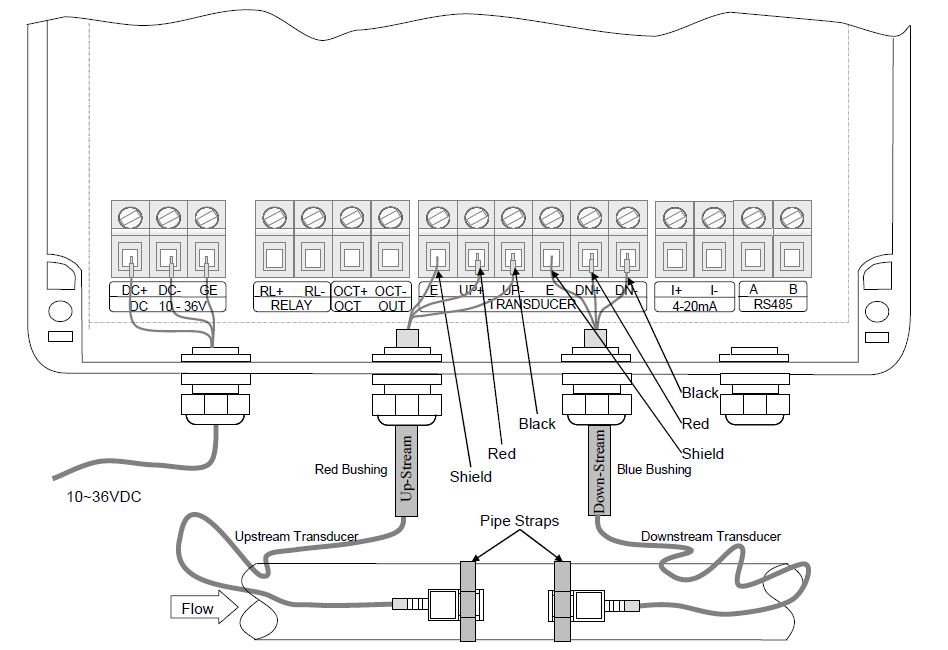

Since the meter is designed for low voltage (10-36VDC), we can provide a clear ABS enclosure that will house this meter, a power supply (110 VAC / 24VDC), and a PANPOWER GEN4 Bridge for data connectivity to the PANPOWER Cloud or integration to onsite SCADA through 4-20 mA (scaled flow rate), volume (GPM or FT3) pulsed output or MODBUS RS-485.

Access Installation Manual

Configuration Support
Choose Quantity
+ Add to Cart
Product Details

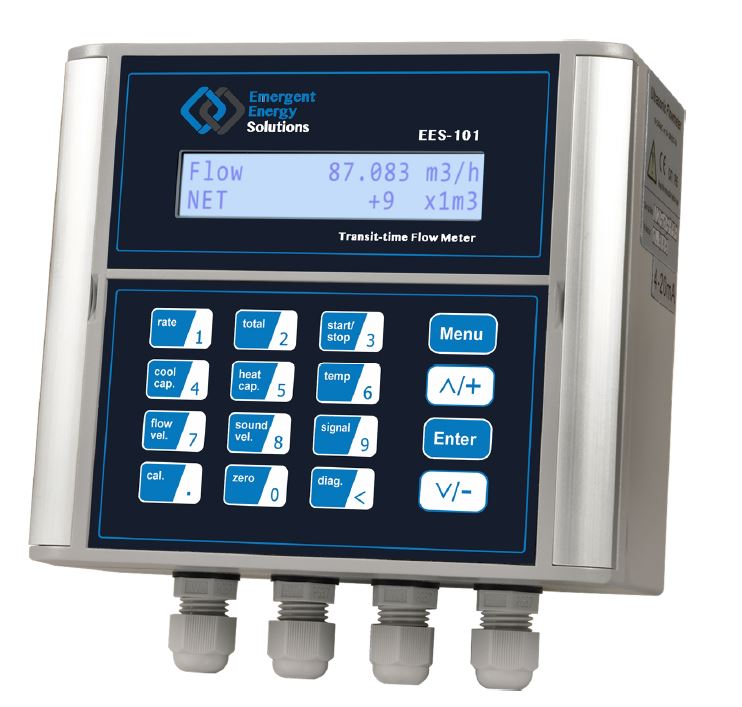

Digital Correlation Transit Time Flowmeter
Installation method: wall mount
Flow Range: 0.03 ~ ±16ft/s (0.01 ~ ±5m/s)
Accuracy:±1.0% of measured value
Repeatability: 0.3%
Pipe Size Range:1”~48” (25mm ~ 1200mm)
Keyboard:16 (4×4) touch keys
Display: 20×2, alphanumeric, backlit LCD
Power supply: 10-36V DC@1Amax
Transmitter enclosure: IP65, ABS/PC enclosure
