Eaton CHCC3DU
$50.00
Current Rating 30 Amps Gauge 4.0 Connector Type Clamp Number Of Contacts 3 Mounting Type DIN Rail Mount Brand Bussmann Voltage 600 Volts Number Of Poles 3 Number of Positions 3 Specification Met UL
See more
| Current Rating | 30 Amps |
| Gauge | 4.0 |
| Connector Type | Clamp |
| Number Of Contacts | 3 |
| Mounting Type | DIN Rail Mount |
| Brand | Bussmann |
| Voltage | 600 Volts |
| Number Of Poles | 3 |
| Number of Positions | 3 |
| Specification Met | UL |
See more
About this item
- Bussman CHCC3DU 3Pole 30A 600V Mfh For 10X38 Class Cc
- Bussmann series solutions comply with major industrial standards and agency requirements such as: BS, IEC, DIN, UL, NEMA, SAE, CSA, CE, C-UL, etc.
- Manufactured at facilities that are ISO 9000 certified
- Bussman CHCC3DU 3Pole 30A 600V Mfh For 10X38 Class Cc
- Bussmann series solutions comply with major industrial standards and agency requirements such as: BS, IEC, DIN, UL, NEMA, SAE, CSA, CE, C-UL, etc.
- Manufactured at facilities that are ISO 9000 certified
Choose Quantity
Product Details
GENERAL SPECIFICATIONS
PRODUCT NAME

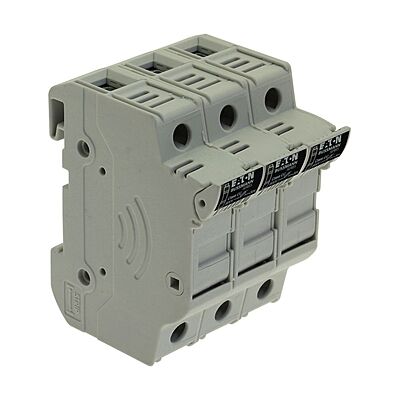

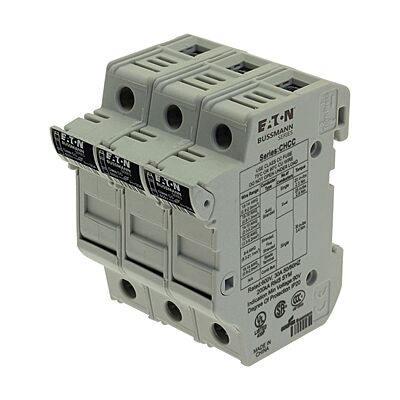

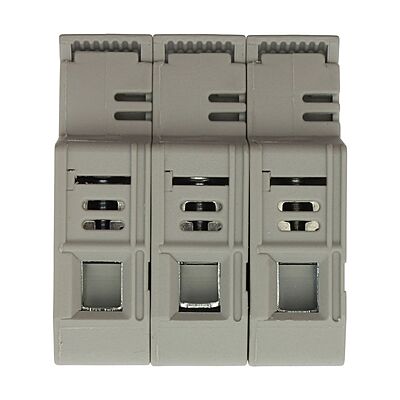

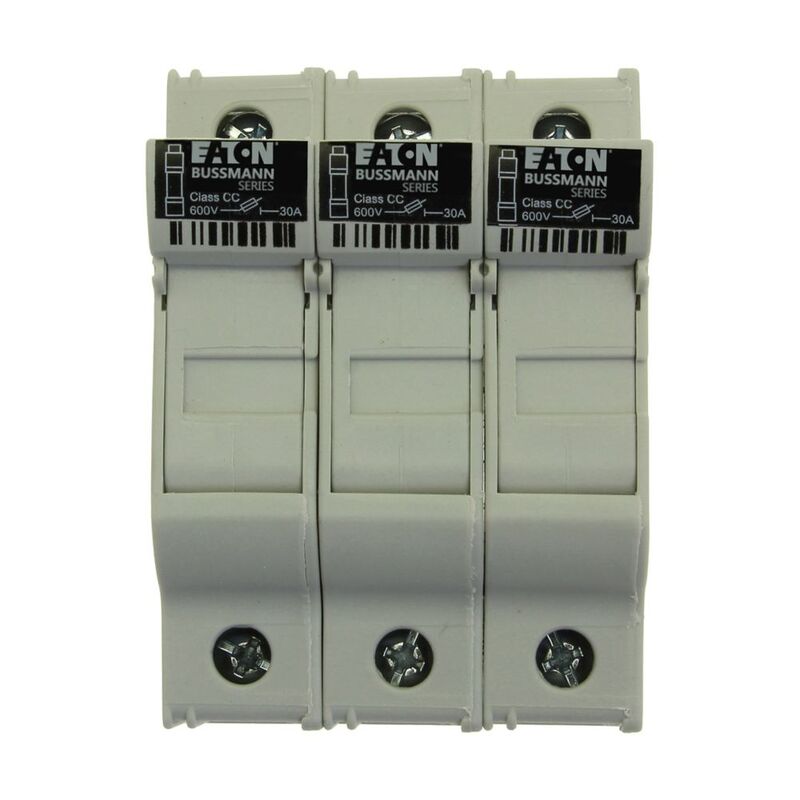

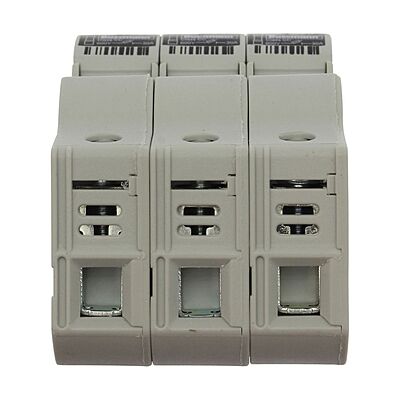

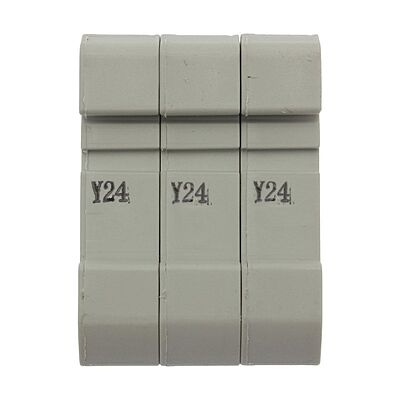

Eaton Bussmann series CHCC modular fuse holder
CATALOG NUMBER
CHCC3DU
UPC
051712362696
PRODUCT LENGTH/DEPTH
69 mm
PRODUCT HEIGHT
74 mm
PRODUCT WIDTH
83 mm
PRODUCT WEIGHT
99.79 g
WARRANTY
Not Applicable
COMPLIANCES
RoHS Compliant
CERTIFICATIONS
Contact Manufacturer
ELECTRICAL RATING
AMPERAGE RATING
30 A
VOLTAGE RATING
600 Vdc
PHYSICAL DETAILS
NUMBER OF POLES
Three-pole
OPERATING TEMPERATURE - MAX
120 °C
OPERATING TEMPERATURE - MIN
-20 °C
GENERAL INFORMATION
CLASS
Class CC
USED WITH
For use with KTK-R, LP-CC and FNQ-R Class CC fuse
