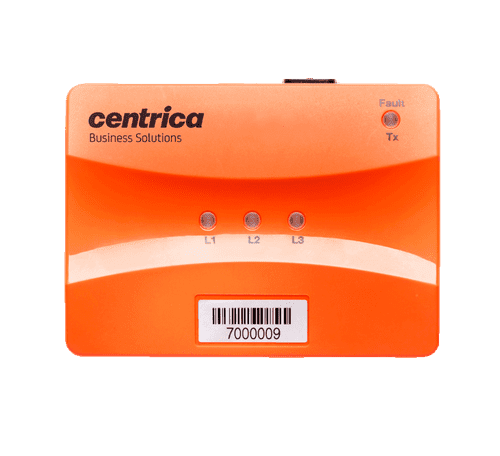

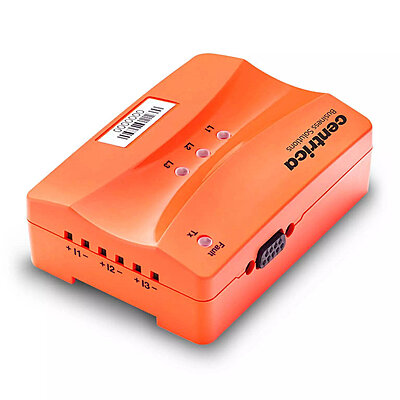

Panoramic Power (Centrica) PAN-42-US or PAN-42-EU Electric Meter
$369.00
The PAN-42 Power Meter provides high-accuracy real-time power consumption, demand and advanced power quality measurements for main power monitoring, sub-metering and for the metering of large devices.
Designed for demanding electrical applications in commercial and industrial manufacturing facilities, supporting industry accuracy standards, the PAN-42 Power Meter enables the metering of power, voltage, current, power factor and power quality measurement data.
The Panoramic Power System monitors electrical energy consumption at individual circuit level and detects excess usage allowing organizations to identify and reduce energy and maintenance expenses.

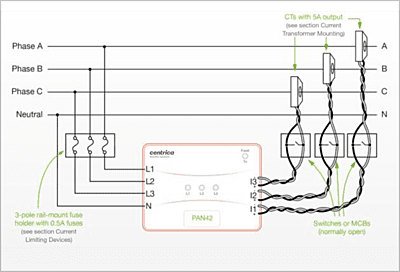

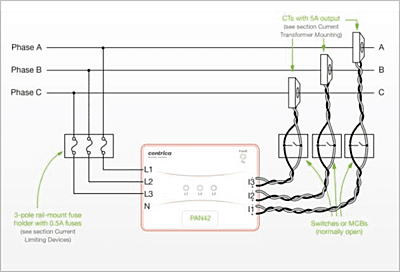

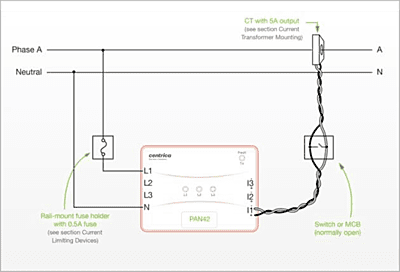

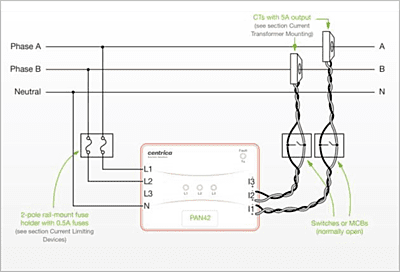

The Panoramic Power System consists of wireless communication sensors, allowing for rapid, non-invasive installation, with almost no disturbance to operations. The PAN-10, PAN-12, and PAN-14 sensors are self powered, but this PAN-42 meter is powered through the reference line voltage. It can measure energy from 1, 2 or all 3 phases. 3 phase metering can be both 3 wire or 4 wire (with neutral).
The meter does not require any maintenance. Data collected by the sensors is sent to a bridge, which, in turn, transfers the information to the Panoramic Power System server through the Internet, using Cloud technology.
The sensors report the energy consumption to the bridge at sub-minute intervals. Consumption reports can be retrieved through the system.
The PAN-42 power meter is designed to work with an external 0-5 Amp Secondary Current Transformer. Emergent Metering offers a variety of Current Transformers that are sized for the metered circuit. These products include:

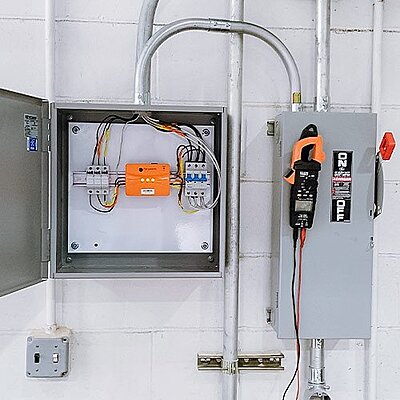

There is an option to purchase the prebuilt Panoramic Power PAN-42 metering kit, which includes the fused disconnect and the shunt breaker, pre-mounted and pre-wired onto a din-rail for easy installation.
Choose Quantity
Product Details
Specifications
Key features • Single, dual or 3-phase metering • Accurate measurement of active and reactive power • Real-time monitoring of current, voltage, power and power quality • Easily integrated with PowerRadar, our cloud-based energy management platform • Fast and easy installation
Outputs • Active energy (kWh) – accumulated, per phase • True RMS voltage and current – per phase • Active and reactive power – per phase • Power factor – per phase • Line frequency
Certification
USA and Canada
Safety: UL 61010-1, UL 61010-2-030, CAN/CSA-C22.2 No. 61010-1 (ETL listed) EMC: FCC Part 15 subpart B, ICES-003 Radio: FCC Part 15 subpart C, RSS-210, RSS-Gen
Europe
Safety: EN 61010-1, EN 61010-2-030 (CE) EMC: EN ETSI 301 489-1, 301 489-3, 613 326-1 Radio: EN ETSI 300 220-1, 300 220-2
Australia
ACMA compliant
Russia
EAC compliant
CB Certification IEC 61010-1, IEC 61010-2-030 by Intertek Testing Services
power meter
- Voltage: [120/208 V], [240/416 V], or [277/480 V]
- Frequency48–62Hz
- Current input range0 – 5 A (up to 10 A peak)
- Current measurement rangedetermined by external CT
- Minimum measurable power0.025W at device inputs (per phase)
- Accuracy (for voltage, current and active energy)According to ANSI C12.1 (Class 1)3
- Transmission frequency434 MHz (EU version) 915 MHz (US version)
- Transmission power (ERP)0 dBm (max)
- Transmission interval10 seconds
- Flammability rating of external enclosureUL94 V-0
- Ingress protection (IP) ratingIP5X
- Operating temperature-25 – 60°C / -13 – 140°F
- Operating humidity range5% – 95% non-condensing
- Storage temperature-25 – 65°C / -13 – 149°F
