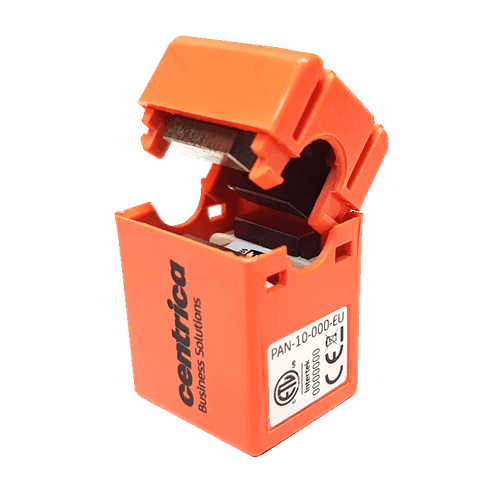

Panoramic Power (Centrica) PAN-10-063-US or PAN-10-063-EU Wireless Electric Meter
$175.00
The Panoramic Power PAN-10 Wireless Sensor is a self-powered amperage sensor that is appropriate for granular monitoring of individual circuits and devices with a max hot-wire outer diameter of .28 inches (7 mm), measuring currents of 0–63 A.
This sensor can measure amperage on 1-Phase, 2-Phase, or 3-Phase circuits. The PowerRadar front end that this sensor integrates into will provide the user with the ability to configure the specific metered circuit's load type and phasing properties.
The Panoramic Power PowerRadar System monitors electrical energy consumption at individual circuit level and detects excess usage allowing organizations to identify and reduce energy and maintenance expenses.
The Panoramic Power System consists of wireless, self-powered sensors engineered to allow for rapid, non-invasive installation, with almost no disturbance to operations. Sensors are easily attached to circuit breakers by just snapping them on to the outgoing electrical wire. They monitor the flow of electricity through the resulting magnetic field and also use the field as a power source. The sensors do not require any maintenance. Data collected by the sensors is sent to a bridge, which, in turn, transfers the information to the Panoramic Power System server through the Internet, using Cloud technology.
The sensors report the energy consumption to the bridge at sub-minute intervals. Consumption reports can be retrieved through the PowerRadar frontend.
• Non-invasive – snaps and fits without disconnection
• No maintenance – self-powered
• High accuracy
• Wireless – no wiring, unlike standard CT-based monitoring systems
• Real-time current data transmitted every 10 seconds
• No maintenance – self-powered
• High accuracy
• Wireless – no wiring, unlike standard CT-based monitoring systems
• Real-time current data transmitted every 10 seconds
Choose Quantity
Product Details
Specifications
Key features • Non-invasive – snaps and fits without disconnection • No maintenance; self-powered • High accuracy • Wireless – no wiring, unlike standard CT-based monitoring systems • Real-time current data transmitted every 10 seconds
Certification
USA and Canada
Safety: UL 61010-1, UL 61010-2-030, CAN/CSA-C22.2 No. 61010-1 (ETL listed) EMC: FCC Part 15 subpart B, ICES-003 Radio: FCC Part 15 subpart C, RSS-210, RSS-Gen
Wireless sensor
- Current measurement range0 – 63 A
- Max hot-wire outer diameter (including insulation)0.28 inch
- Minimum operating current0.5 – 1 A (typical)
- AC frequency supported50 Hz (EU, JPE versions) 60 Hz (US, JPW versions)
- Transmission frequency434 MHz (EU version) 915 MHz (US version) 923 MHz (JPE, JPW versions)
- Transmission power (ERP)0 dBm (max – EU, US versions) -4 dBm (max – JPE, JPW versions)
- Transmission interval10 seconds
- Flammability rating of external enclosureUL94 V-0
- Ingress protection (IP) ratingIP5X
- Operating temperature-25 – 60°C / -13 – 140°F2
- Operating humidity range5% – 95% non-condensing
- Storage temperature-25 – 65°C / -13 – 149°F
