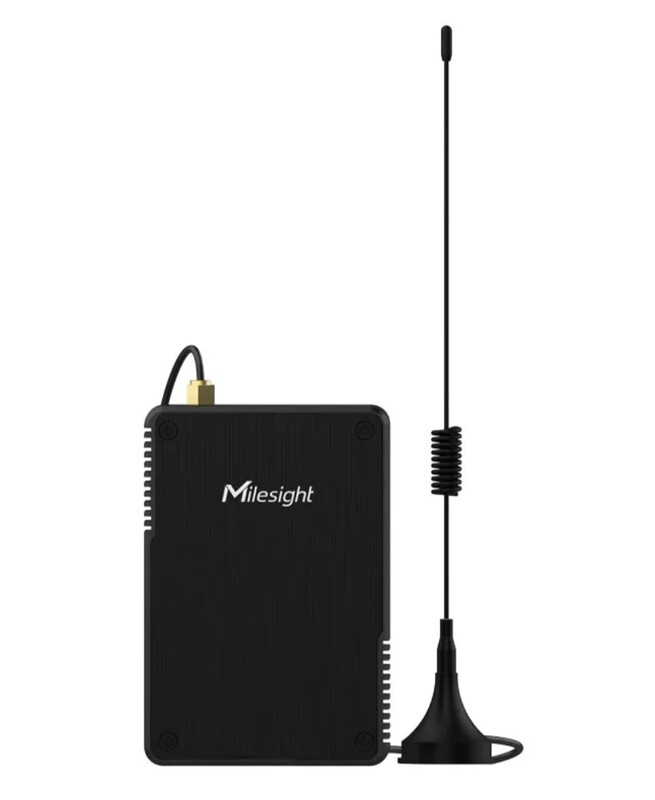

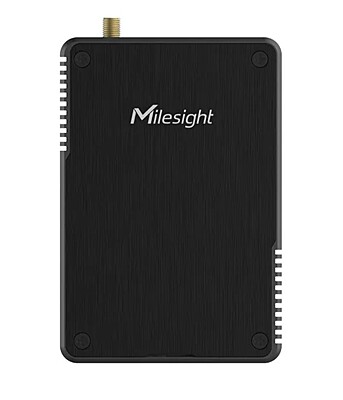

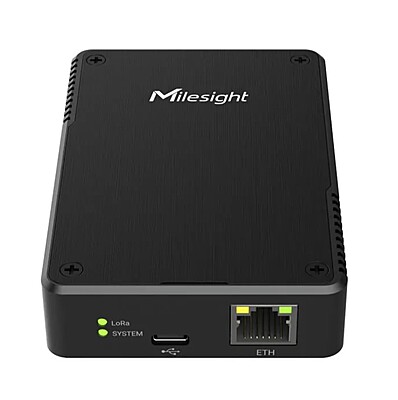

Milesight UG56-915M Industrial Lorawan Gateway
Milesight UG56-915M Industrial Lorawan Gateway
Milesight UG56-915M Industrial Lorawan Gateway
Milesight UG56-915M Industrial Lorawan Gateway

Milesight UG56-915M Industrial Lorawan Gateway

$270.00
UG56 is a robust 8-channel indoor LoRaWAN® gateway. Adopting SX1302 chip and high-performance quad-core CPU, UG56 supports connection with more than 2000 nodes. UG56 has line of sight up to 15 km and can cover about 2 km in urbanized environment, which is ideally suited to smart building, smart industries and many other indoor applications. UG56 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated mainstream network servers (such as The Things Stack, ChirpStack, etc.), built-in network server and Milesight Development Platform for easy deployment.
Choose Quantity
+ Add to Cart
Product Details

Enable All-Round Connectivity with the High-Performance 8-channel LoRaWAN® Gateway UG56

The Milesight UG56 offers reliable connectivity for industrial applications, featuring a compact, industrial-grade design. It provides seamless connectivity via Ethernet, cellular, and Wi-Fi, making it a versatile solution for various networking needs.

Features

  • Industrial-Grade Design with Compact Size: Ensures durability and easy installation.
  • Multi-Connectivity Options: Stay Connected via Ethernet, cellular, and Wi-Fi
  • Gateway Fleet: Provides comprehensive networking solutions
  • Listen Before Talk (LBT): Maintains downlink data integrity
  • Advanced Chipset: Equipped with Semtech SX1302 Chip and a high-performance quad-core CPU
  • Embedded Network Server: Compatible with TTN, ChirpStack, Everynet, Senet, and more.
  • BACnet/IP Support: Seamlessly integrates into existing Building Management Systems (BMS)
  • Development Platform Support: Compatible with Auto-P, Milesight Development Platform, Chirpstack Gateway Bridge V4, and the latest version of Node-RED.
  • WiFi 2.4G: supports default password protection

LoRaWAN Specifications:

  • Chipset: SX1302, 8 Channels (Half-duplex)
  • Antenna: 1 x 50 SMA Connector (Connector PIN: SMA Female)
  • Frequency: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
  • Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

Connectivity

  • Ethernet: 1 x RJ45 PoE PD Port, 10/100/1000 Base-T (IEEE 802.3)
  • Wi-Fi: IEEE 802.11b/g/n, 2.4 GHz
  • Cellular (Optional): 1 x Mini SIM-2FF, supports global GSM/3G/4G LTE frequency bands

Hardware

  • CPU: Quad.core 1.3 GHz, 64.bit ARM Cortex.A35
  • Power Supply: 1 × 802.3af Standard PoE Input, 5V via Type-C Port

Physical Characteristics

  • Ingress Protection: IP30
  • Dimension: 110 x 75 x 24 mm (4.33 x 2.95 x 0.94 in)
  • Installation: Desktop or wall mounting
