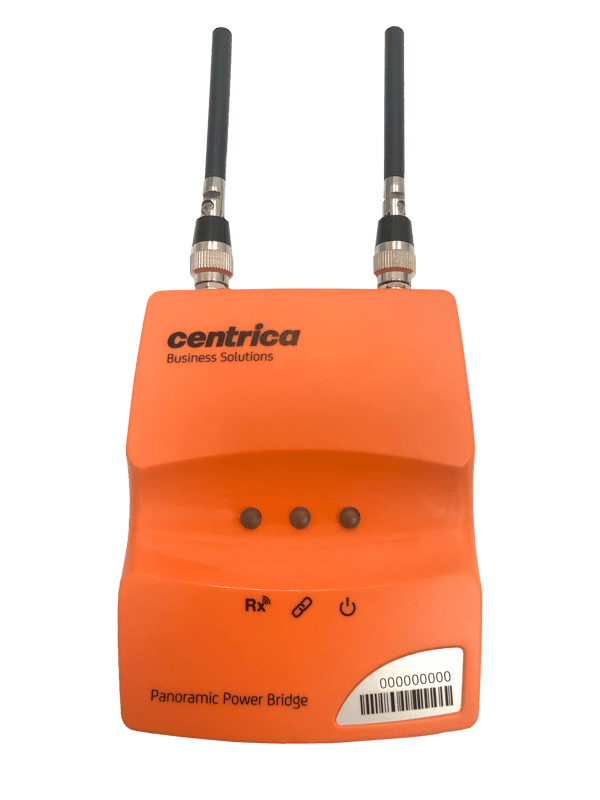

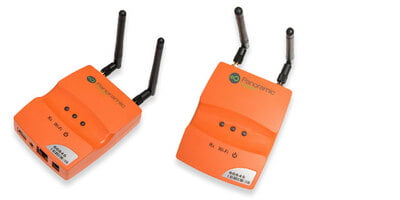

Panoramic Power (Centrica) PAN-2-H-USV4+ or PAN-2-H-3G-USV4+ LAN / WIFI / 4G LTE
$370.00 - $470.00
Tags:
Multiple product options:
PAN-2-H-US V4+ (LAN)
PAN-2-H-3G-US V4+ (LTE)
PAN-2-H-EU V4+
PAN-2-H-3G-EU V4+Our Panoramic Power Gen 4+ Bridge delivers energy intelligence from our wireless sensors and power meters for visualization and analysis in our energy management platform, PowerRadar. Customers retain the flexibility to use the software of their choice by using the Modbus TCP interface to export and manage the data locally – directly from the Gen 4+ Bridge.
• Plug-and-play installation with flexible mounting options
• Store capability in case of network loss
• Field-upgradable firmware
• Field-upgradable firmware
• Initial configuration (built-in web interface)
• Integrates with 3rd party meters for gas, heat, air and water
• Over-the-air upgrades can be enabled to receive latest firmware automatically from PowerRadar
• Integrates with 3rd party meters for gas, heat, air and water
• Over-the-air upgrades can be enabled to receive latest firmware automatically from PowerRadar
Local MODBUS TCP/IP Server and MODBUS RTU operations supports up to 32 devices per bridge that is within the wireless range of the bridge. If an installation has more than 32 devices that needs to be served up a MODBUS Master, an additional bridge will be needed for every additional grouping of 32 sensors.
Connectivity Options
Choose Quantity
Product Details
Specifications
About Panoramic Power® and the Bridge The Panoramic Power System monitors electrical energy consumption at the site level as well as at the individual circuit level. It detects excess usage, allowing organizations to identify and reduce energy, maintenance expenses and monitor site level consumption.
The system consists of wireless, self-powered sensors engineered to allow for rapid, non-invasive installation, with almost no disturbance to operations. Sensors are easily attached to circuit breakers by snapping them onto the outgoing electrical wire. They monitor the flow of electricity through the magnetic field it creates and also use it as a power source.
The sensors do not require any maintenance. Sensors report the power consumption to the bridge. The bridge in turn transfers the circuit level information, along with readings originated by the utility meter and read through a pulse input on the bridge, to PowerRadar, the solution's cloud–based analytics platform. A single bridge can collect data from up to 250 sensors and two utility meters, and multiple bridges can be used in a single site to increase coverage
Centrica Bridge
- Physical dimensions (without antennas)4.4 x 3.4 x 1.4 inches
- Weight.33 lbs

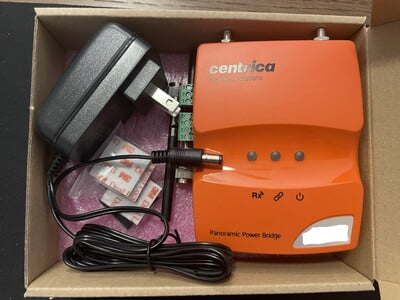

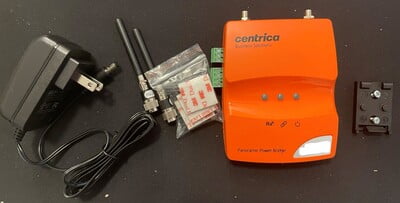

- Power adapter (included)Input: 100-240 VAC 50-60Hz, Output: 5 VDC
- Power consumption5 Watt max
- Sensor reception sensitivity-105 dBm
- Cellular bands (MHz)4G LTE through ATT IOT SIM. This option only available on 4G LTE variant
- Wi-Fi protocol802.11 b/g/n
- Wi-Fi security protocolWEP64, WEP128, WPA, WPA2, WPA2-Enterprise
- CompressionSensor messages are collected and sent once every 10 seconds to reduce bandwidth
- AuthenticationCHAP protocol used by the server to verify connected bridge’s identity
- CertificationUSA Safety: UL 61010-1, UL 61010-2-030
- Flammability rating (enclosure)UL94 V-0
- Ingress protection (IP) ratingIP5X
- Operating temperature-25 – 60°C / -13 – 140°F
- Operating humidity range5% – 95% non-condensing
- Storage temperature-25 – 65°C / -13 – 149°F
- Pulse interface2x KY inputs (5 V open voltage, 0.9 mA max current, 5 ms minimum pulse width
