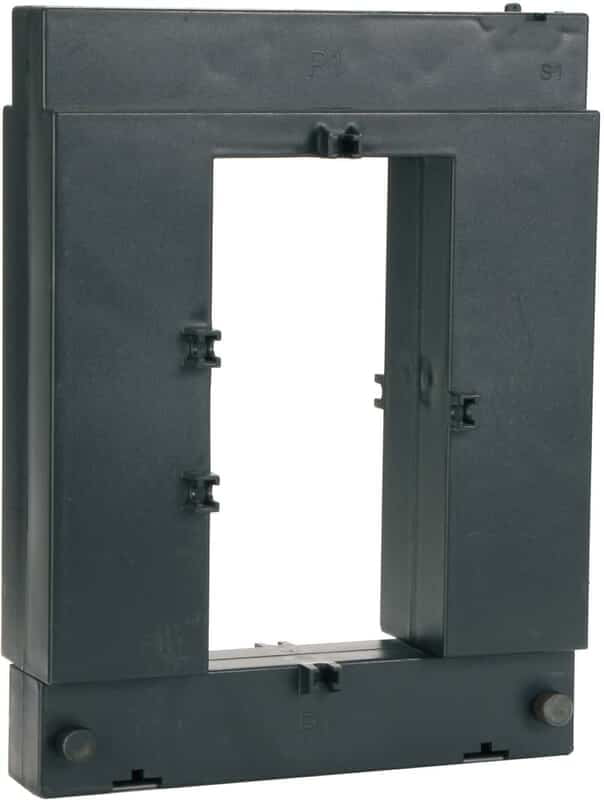

2000 Amp (0-5A) Current Transformer CT for electrical sub-metering
AC Current 2000 Amp AC Current Transformer (CT) is mounted around a current carrying wire to measure AC Amperage. This CT provides 0-5 Amp output proportional to the measured current and is used with the PAN-14 or PAN-42 sensors. The result is accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. These CTs should be ordered in sets of 3 for measurement of a 3 phase circuit.
UL recognized
Split-core design for fast, easy installation
Rated input from 1 Amp to 2000 Amp
Output 0 - 5 Amps at rated current
Operates from 30 Hz to 1,000 Hz
Phase angle < 2 degrees measured at 50% rated current
Linearity accuracy ± 1%
UL, c(UL) recognized, CE, and RoHS compliant
Accuracy at 10% to 130% of rated current
