PAN-14 Wireless Sensor

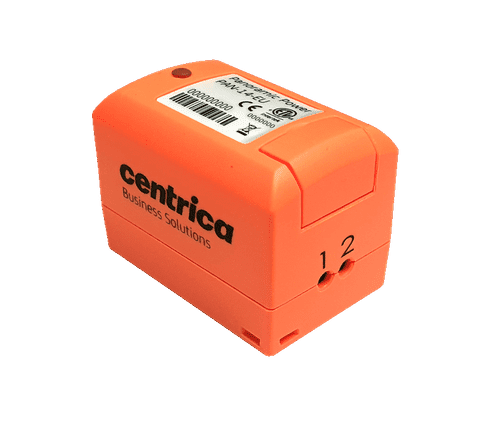

Centrica PAN-14 Wireless Sensor

$159.00
The Panoramic Power PAN-14 Wireless Sensor is appropriate for granular monitoring of individual circuits and devices.

• High current sensor attaches to any size standard 0–5 A current transformer
• Allows measurements at any current range or wire gauge
• Wireless sensor and CT are closed around the hot wire with no additional wiring
• Plus all the benefits of the PAN-10 and PAN-12 models

Choose Quantity
+ Add to Cart
Product Details
Specifications
Key features • Connects to any standard 5 A current transformer • No maintenance; self-powered • High accuracy • Wireless sensor and CT are closed around the hot wire with no additional wiring • Real-time current data transmitted every 10 seconds

Certification
USA and Canada
Safety: UL 61010-1, UL 61010-2-030, CAN/CSA-C22.2 No. 61010-1 (ETL listed) EMC: FCC Part 15 subpart B, ICES-003 Radio: FCC Part 15 subpart C, RSS-210, RSS-Gen
Europe
Safety: EN 61010-1, EN 61010-2-030 (CE) EMC: EN ETSI 301 489-1, 301 489-3, 613 326-1 Radio: EN ETSI 300 220-1, 300 220-2
Australia
ACMA compliant
Russia EAC compliant
Japan
Radio: ARIB STD-T108
CB Certification IEC 61010-1, IEC 61010-2-030 by Intertek Testing Services
Wireless sensor
  • Current measurement range
    Determined by external current transformer
  • Current input range
    0 – 5 A (up to 10 A peak) (from external current transformer)
  • Minimum operating current
    0.03 – 0.05 A (at input from external CT)
  • AC frequency supported
    50 Hz (EU, JPE versions) 60 Hz (US, JPW versions)
  • Transmission frequency
    434 MHz (EU version) 915 MHz (US version) 923 MHz (JPE, JPW versions)
  • Transmission power (ERP)
    0 dBm (max – EU, US versions) -4 dBm (max – JPE, JPW versions)
  • Transmission interval
    10 seconds
  • Flammability rating of external enclosure
    UL94 V-0
  • Ingress protection (IP) rating
    IP5X
  • Operating temperature
    -25 – 60°C / -13 – 140°F
  • Operating humidity range
    5% – 95% non-condensing
  • Storage temperature
    -25 – 65°C / -13 – 149°F
