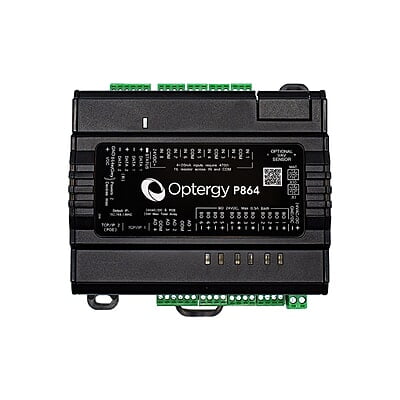

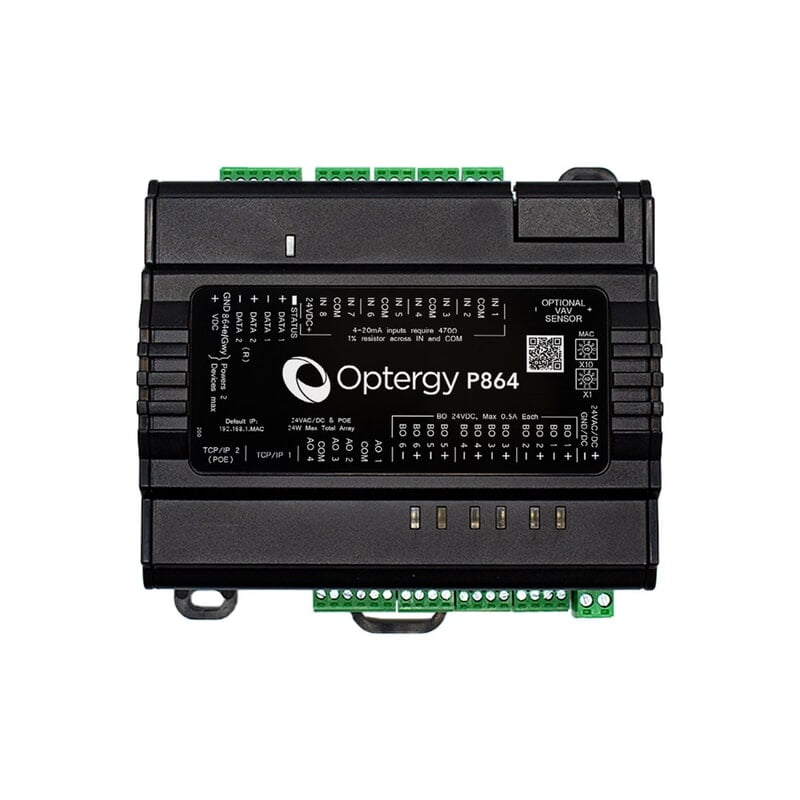

Optergy P864 Edge Controller

Net Pricing Shown - Dealer Discount Applied

The Optergy P864 edge controller enables you to fully optimise your building performance by delivering smart monitoring and control with ease. You get real time processing capabilities and the added confidence that comes with a controller designed to fit your exact building needs.

The Optergy P864 can directly control its inputs and outputs using BACnet IP, MS/TP, or REST API. The Optergy P864 can host control logic, schedules, trends, alarms and is expandable using the Optergy 864e expansion modules up to 144 hardware data points. The Optergy P864 can be powered using PoE (Power over Ethernet) which simplifies communication wiring and power needs.

KEY FEATURES
General
• Web based programming logic
• Local web page configuration (HTTPS)
• Intellectual property safeguards
• Built-in programming tools
• REST API
• User Access Permissions
• BTL Certified Building Advanced Application Controller (B-AAC)

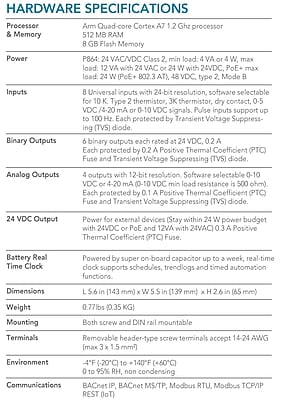

Hardware
• 8 x universal inputs (24-bit resolution)
• 6 x binary outputs
• 4 x analog outputs (12-bit resolution)
• Add up to 7 additional (Optergy 864e) input/output modules
• Additional optional airflow sensor (Optergy AFS-864)

BACnet Features
• 150 trendlogs
• 100 alarms
• 10 schedules
• 10 calendars
• 10 notification classes

Open Protocol Configuration Options
• BACnet IP - Daisy Chain IP (10/100 Mbps)
• BACnet MS/TP (MS/TP baud: 9.6, 19.2, 38.4, 76.8, 115.2 kbps)
• BACnet MS/TP Routing (BACnet IP to MS/TP Router)
• Modbus IP/485 Gateway
• Powered via PoE+ (IEEE 802.3 AT), 24 VAC, 24 VDC
