The VPFlowScope® DP is the ultimate measurement tool for saturated compressed air flow measurements. The unique design enables you to take measurements in the discharge pipe of a compressor under 100% saturated conditions. You can combine the probe with two display module types or with a connector cap without display.
Your differential pressure flow meter for saturated compressed air flow measurements

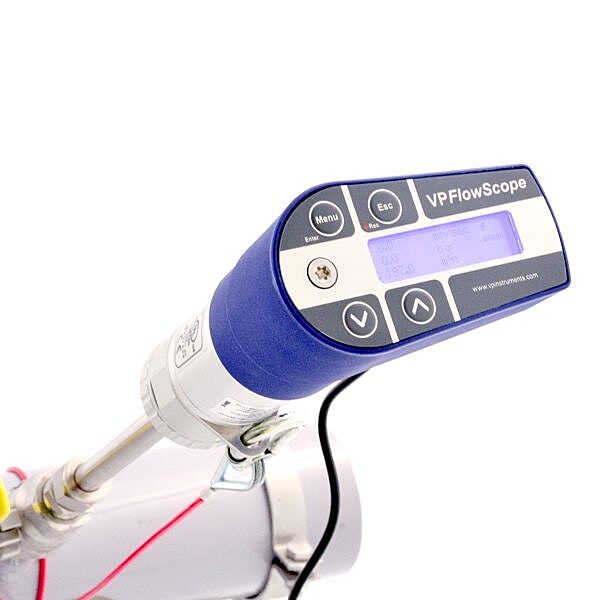

The VPFlowScope® DP flow meter is a patented differential pressure flow meter designed for accurate measurement of saturated and hot compressed air. This innovative 4-in-1 device simultaneously measures bi-directional flow, pressure, temperature, and total flow, giving you a complete insight into your compressed air system’s performance. Because it can be installed under pressure without interrupting production, it’s ideal for continuous operations. The VPFlowScope DP offers major benefits such as improved compressor efficiency, accurate performance monitoring, and reliable energy audits. Its built-in data logger and VPStudio software make it easy to analyze data, identify losses, and uncover energy-saving opportunities. Compact yet powerful, the VPFlowScope DP provides a cost-effective and practical way to optimize your compressed air network while ensuring process reliability and sustainability.
Features and benefits of this compressed air flow meter
- For saturated compressed air
- For hot compressed air
- Four sensors in one instrument
- Standard Modbus and 4 … 20 mA
- Bi-directional flow measurements
Applications of this differential pressure flow meter
- Air audits

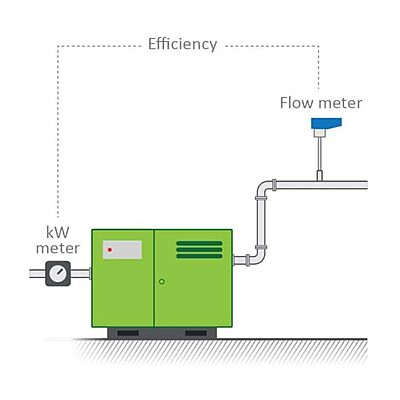

- Compressor efficiency monitoring
- Air treatment equipment (drier/filter) monitoring

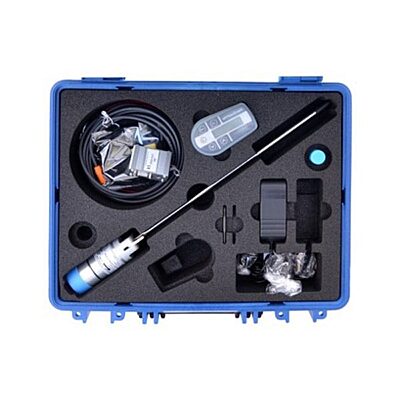

One-stop shopping: VPFlowScope DP start kit
VPInstruments offers a VPFlowScope DP flow meter start kit; an entire set of everything you need to get started immediately for a very affordable price. You don’t have to worry about ordering everything separately or to gather everything you need in order to do an audit or an installation. You just order the kit and away you go.
It includes:
- The VPFlowScope DP Probe

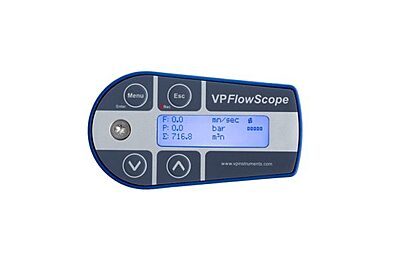

- A three-row LCD display with 2.000.000 data points data logger
- Flow direction sensitivity
- A rugged explorer case
- An interface box JB5 with 5m/16,4 ft cable (M12 connector) + 12V power supply
- An RS485 to USB cable
- A compression fitting with Teflon ferrule
- A safety cable
- A calibration report
- An English user manual
- VPStudio software
Specifications
| Flow | 20 … 200 mn/sec |65 … 650 sfps |
| Bi-directional | Standard |
| Pressure | 0 … 16 bar | 0 … 250 psi gauge |
| Temperature | -40 … 150 °C | -40 … 302 °F. Icing should be avoided |
| Gas types | Saturated compressed air, dry compressed air, nitrogen and inert gases |
| Output | RS485 (Modbus RTU) digital | 4 … 20 mA analog |
| Probe length | 400 mm | 15″ |
| Power supply | 12 … 24 VDC |
| Approvals | CE, UL/CUL |
