Obvius / Leviton A7810 - Energy Monitoring Hub Lite
$650.00
Tags:

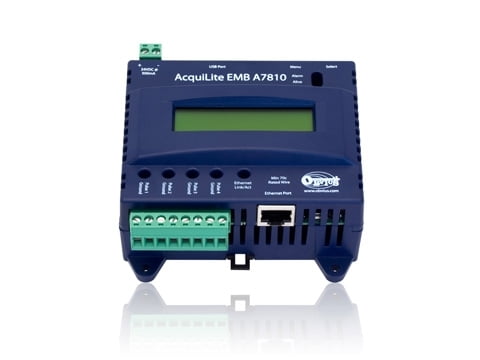

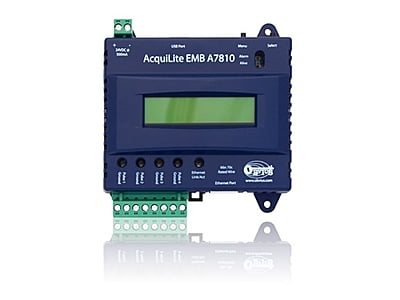

Leviton Obvius AcquiLite – EMB A7810
Obvius’ AcquiLite – EMB A7810 is an intelligent, flexible data acquisition server providing system integrators with the ability to collect energy data from passive pulse output meters. The AcquiLite – EMB A7810 is designed to connect to IP-based software dashboards and kiosks, enterprise energy management applications, as well as demand response and smart grid programs. The AcquiLite – EMB A7810 server lets you benchmark energy usage and reduce energy costs.
AcquiLite Embedded Data Acquisition Server (4 dry pulse inputs, Ethernet), Din Rail Mountable, CE, UL Listing.
Embedded (OEM) Solution
The compact AcquiLite – EMB A7810 footprint and industrial temperature range (-30 to 70C) makes this a perfect solution for embedded applications. Reduce development time and speed up integration by collecting and distributing energy information directly from your equipment.
Data Collection
The AcquiLite – EMB collects and logs data from connected pulse output or Modbus TCP devices based on user selected intervals. Data from downstream devices are time stamped and stored in non-volatile memory. This interval data is stored locally until the next scheduled upload or manual download. Using an Ethernet (LAN) connection you can push or pull data via HTTP, XML, FTP or any custom protocol utilizing our AcquiSuite Module to build your own application, including integrated cellular communication options.
Installation & Features
No software is required – easily access information through any web browser. There are several additional features including alarming, SNMP Traps, network configuration, USB, security provisions and backlit LCD. Optional cellular communication options are available for wireless internet connectivity.
Compatibility
The AcquiLite – EMB A7810 is compatible with nearly any front-end software platform providing users with a variety of reporting tools; whether it’s a local server or an enterprise wide reporting suite.
The EMB A7810 is also an accepted data integration logger to be used with the Panoramic Power Front End. Its data logging, storage and data upload capabilities provides a simple path to integrate I/O data. The data is stored locally on the EMB A7810 and is uploaded to the Panoramic Power server for dashboarding. Data uploads can range from 1 minute to every 24 hours.
Applications
- Push or pull meter data to energy dashboards, kiosks and software applications
- Create load profiles for energy purchases
- Utility submetering (electricity, gas, water, etc.)
- Measurement and verification (M&V)
- Access energy information from local or remote sites
- Benchmark building energy usage
- View “real time” performance data
- Track energy use and peak demand for Demand Response programs
- Monitor utility meters for rebate program compliance
- Alarm notification for data points above or below target levels (including SNMP Traps)
- LEED / Energy Star certification
Link to Data Sheets and Specifications https://leviton.com/products/a8810
Submit a question about this product or request for custom configuration: https://www.emergentmetering.com/product-support-intake
Choose Quantity
Product Details
Leviton A7810-000 Specifications
Processor | ARM 9 embedded CPU |
Operating System | Linux 2.6 |
Memory | 32 MB RAM |
Flash ROM | 16 MB NOR Flash |
Interval Recording | 1 to 60 minutes, user selectable (default 15 minutes) |
LEDs | Ethernet, Pulse (x4), power, alarm |
Console | 2 x 16 LCD character, two push buttons |
Power | |
Power Supply | 24VDC, 500mA, Required (not included) *This unit is to be sourced by a Class 2 power supply with the following output: 24VDC, 500mA min not to exceed 8A. Note: Only 350mA is required if the USB port is not used. |
Isolation | RJ45 Ethernet is isolated to 1500VDC from the main board. (Power input, Pulse inputs and USB nonisolated) |
Communication | |
Protocols | Modbus/TCP, TCP/IP, PPP, HTTP/HTML, FTP, NTP, XML, SNMP-Trap |
LAN | RJ45 10/100 Ethernet, full/half duplex, auto polarity |
USB | USB expansion port (cellular modem options available) |
Inputs | |
I/O | 4x Pulse inputs, dry contact, standard or KYZ, closure threshold 100 to 2.5K user selectable |
Pulse Rate | Pulse input maximum rate 10Hz, minimum pulse width 50ms |
Storage | Pulse count values stored in non-volatile memory |
Physical | |
Weight | 0.42lbs (0.19g) |
Size | 4 x 4.25 x 2" (102 x 108 x 51mm) |
Environment | |
North America | -30 to 70°C, 0 to 95% RH, Non-Condensing |
Altitude | 2000M max |
Pollution | Degree 2 |
Codes and Standards | |
Emissions | FCC CFR 47 Part 15, Class A, EN 61000, EN61326 |
Safety | UL61010 Recognized, EN 61010 |
